P 4395 | PeakTech
Insulation tester, LCD display, CAT III 600 V, PeakTech P 4395
Order No.: 24K5624
EAN: 4099891472191
MPN:
P 4395
4395
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
283.2557 € *
Standard delivery time from the manufacturer is: 2 Weeks

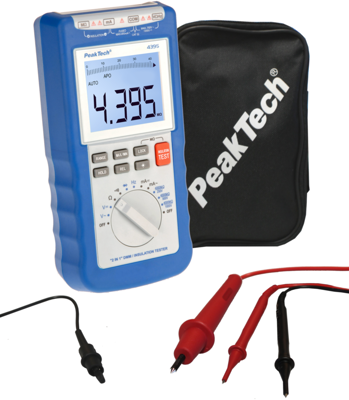

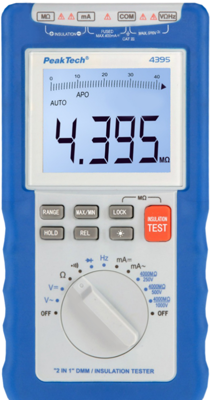

Insulation tester, 4395, PeakTech
Multifunction meter with integrated protective frame consisting of an automatic digital multimeter and insulation meter, ideal and indispensable for use in electrical installation work. The 3 3/4-digit, 23 mm LCD display (max. 3999) with function icons and backlighting ensure easy and accurate measurement data acquisition. Measurements of DCV, ACV, DCA, ACA, Ohm, Freq., diode test, continuity test function and insulation tests according to VDE-0413, part 1 are highlighted as special features.
Features
- Automatic and manual range selection
- Data hold, auto power off, relative and maximum/minimum hold functions
- Three test voltages: 250 V, 500 V, 1,000 V; insulation test timing function: insulation test stops automatically after 30 seconds
- Manual locking or unlocking of the insulation test
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | insulation tester | |
| Version | LCD display | |
| Surge voltage category | CAT III 600 V | |
| Insulation resistance Min | 0.1 MΩ | |
| Insulation resistance Max | 4000 MΩ | |
| Max measured value DC voltage | 600 V | |
| Max measured value AC voltage | 600 V | |
| Batteries | AA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
