P 2755 | PeakTech
Installation tester, TFT display, CAT III 600 V, PeakTech P 2755
Order No.: 24K1920
EAN: 4250569403002
MPN:
P 2755
2755
Unit Price (€ / pc.)
861.4886 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
861.49 € *
Price list
Quantity
Price per unit*
1 pcs.
861.4886 €
5 pcs.
818.1131 €
*incl. VAT plus shipping costs
Subject to prior sale

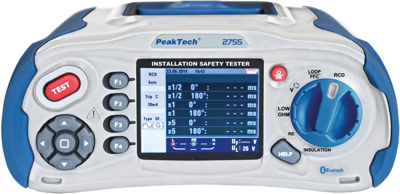

Multifunctional installation tester PeakTech 2755
For measurements to DIN VDE 0100/0413, EN 61557-6, EN 61008, EN 61009, and IEC 60364.

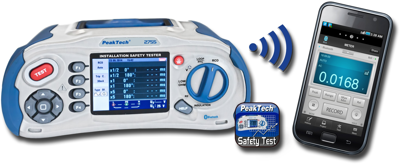

With 8.9 cm (3.5") TFT display, USB port, Bluetooth port for data transmission to smartphones by means of Android or iOS App, internal memory and SD card
Loop impedance: 0.23 to 999 ohm, ±5.0 %
Line impedance: 0.23 to 999 ohm, ±4.0 %
GFCI test current multiplier: x ½, x 1, x 2, x 5, ±1.0 %
GFCI test current: 10/30/100/300/650 mA, 1.0 A
Voltage measurements: 80 to 500 VAC
Additional functions: GFCI tripping time, insulation test, low-impedance test, ground resistance
Safety: CAT III 600 V
Degree of protection: IP 65
Dimensions: 240 x 105 x 145 mm
Weight: 1,56 kg
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Surge voltage category | CAT III 600 V | |
| Max measured value DC voltage | 500 V | |
| Product type | installation tester | |
| Degree of protection (IP) | IP65 | |
| Insulation resistance Max | 4000 MΩ | |
| Max measured value AC voltage | 500 V | |
| Version | TFT display | |
| Batteries | AA | |
| Insulation resistance Min | 0.5 MΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
