P 2695 | PeakTech

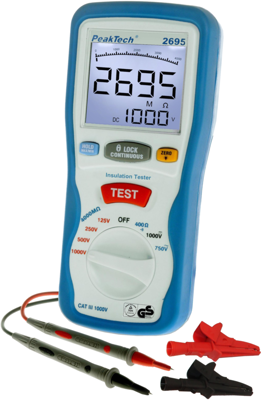

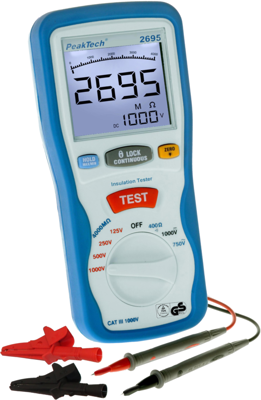

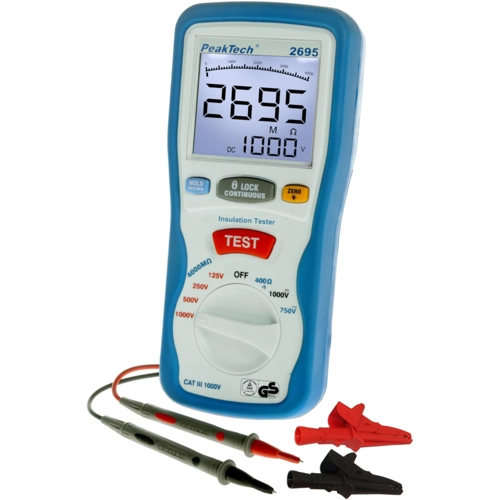

Insulation tester, LCD display, CAT III 1000 V, PeakTech P 2695
Order No.: 24K2360
EAN: 4250569400544
MPN:
P 2695
2695
Unit Price (€ / pc.)
189.7574 € *
Next delivery: 1 pcs. on 2025-06-04
Total Price:
189.76 € *
Price list
Quantity
Price per unit*
1 pcs.
189.7574 €
5 pcs.
183.6289 €
*incl. VAT plus shipping costs
Subject to prior sale
Digital insulation testers, type PeakTech 2695.
Insulation test up to 4000 Mohm, MIN/MAX HOLD, auto-detection of circuits with voltage greater than 30 V, backlit LCD with bar graph; Test voltages: 125/250/500/1000 V. Short-circuit current: min. 1.0 mA. Test current: 1.0 mA. Measuring range AC voltage: 750 V, DC voltage 1000 V. Resistance: 400 ohm. Operating voltage: 9.0 VDC. Safety: EN 61010-1, Cat. III 1000 V. Dimensions: 92 x 200 x 50 mm. Weight: 700 g. Supplied with carrying case, test leads, 6 x AA batteries, operating instructions.
Type: 2695, insulation tester
Technical specifications
| Version | LCD display | |
| Batteries | AA | |
| Product type | insulation tester | |
| Max measured value DC voltage | 1000 V | |
| Insulation resistance Max | 4000 MΩ | |
| Surge voltage category | CAT III 1000 V | |
| Max measured value AC voltage | 750 V | |
| Insulation resistance Min | 1 MΩ |
Download
Logistics
| Customs tariff number | 90303100 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
