P 5605 | PeakTech
Thermal image camera
Order No.: 21K7581
EAN: 4250569403392
MPN:
P 5605
5605
Unit Price (€ / pc.)
348.3606 € *
Standard delivery time from the manufacturer is: 2 Weeks

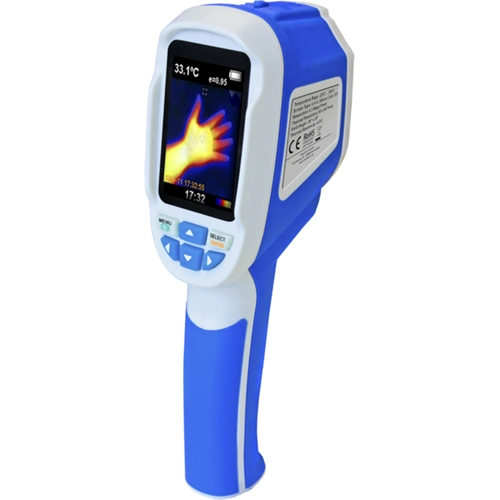

IR thermal imaging cameras, type PeakTech 5605.
For troubleshooting electrical and mechanical equipment and systems, 2.8 color LCD, graphic menu control; Thermal image resolution: 60 x 60 pixels. Shots with integrated digital camera. Images with emission factors and measured values. Five-step photo to thermal image overlay. Five color palettes (Gray, Iron, Rainbow, etc.). Cold and Hot display, MIN/MAX display. Micro SD card. takes with time and date logging. Temperature range: –20 °C to +300 °C. Sensitivity: 0.3 °C. Tolerance: ±2.0 %. Emission factor: 0.1 to 1.0. Wave lengths: 8.0 to 14 µm. Frame frequency: 6.0 Hz. Operating voltage: 4 x 1.5 V AA battery. Dimensions: 62 x 212 x 95 mm. Weight: approx. 320 g
Type: 5605, thermal imaging camera
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resolution | 60 x 60 pixel | |
| max. operating temperature | 300 °C | |
| Field of View | 20° x 20° | |
| min. operating temperature | -20 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
