P TKS-8 | PeakTech
Measuring lead with (test probe, straight) to (4 mm plug, angled), 1.2 m, red/black/gray, PVC, CAT III, P TKS-8
Order No.: 24K5737
EAN: 4099891066246
MPN:
P TKS-8
TKS-8
Unit Price (€ / pc.)
9.3653 € *
Available: 23 pcs.

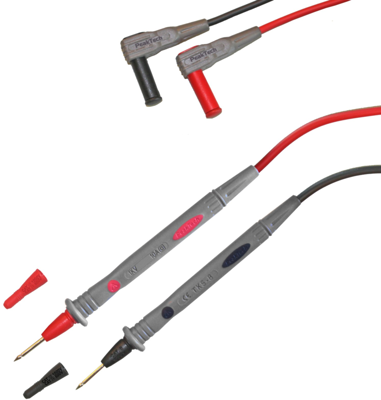

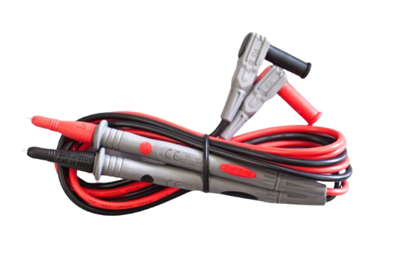

Test lead, TKS-8, PEAKTECH
High flexible test leads with 2 mm spring-contact probe tib and sheath. These safety test leads are produced according to the standard IEC / EN - 61010-031:2008 in 4 mm safety to the current standard IEC / EN - 61010-031:2008 in 4 mm safety technology and have a robust design in double insulation, a non-slip plastic surface with a modern design and 90° angle plugs for connection to all conventional multimeters.
Features
- Double-insulated cables
- Overvoltage category CAT III 1000 V
- 2 mm diameter probe, 18 mm long with sheath
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 1000 V | |
| Connection (2) | 4 mm plug, angled | |
| Rated category | CAT III | |
| Rated current | 10 A | |
| Colour | red/black/gray | |
| Material | PVC | |
| Cable length | 1.2 m | |
| Touch safe | Yes | |
| Stackable | No | |
| Connection (1) | test probe, straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85442000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
