P 1375 | PeakTech

4-channel touchscreen oscilloscope P 1375, 100 MHz, 1 GSa/s, 8" TFT, 3.5 ns

Order No.: 21K5510
EAN: 4250569404436
MPN:
P 1375
1375

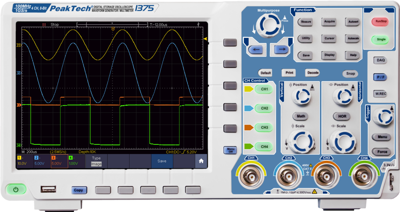

P 1375 PeakTech Oscilloscopes Image 1

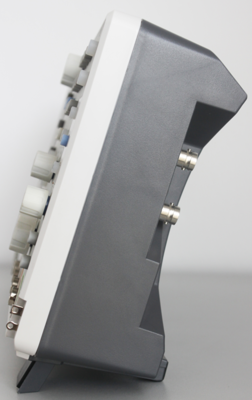

P 1375 PeakTech Oscilloscopes Image 2

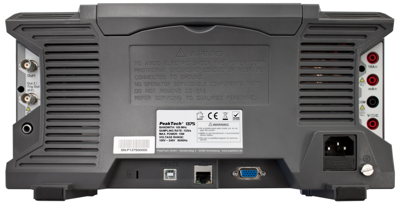

P 1375 PeakTech Oscilloscopes Image 3
Image may differ
Unit Price (€ / pc.)
1,456.3577 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,456.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,456.3577 €

4-channel digital storage oscilloscope of the latest generation with high-resolution TFT color display and comprehensive additional functions, such as the integrated digital multimeter, VGA-Output & CAN-Bus decoder.

For data transmission of the measured values to the PC or for remote control, various interfaces such as LAN, WiFi & USB (Host & Device) are available.

This newly developed series offers a wide range of applications with ease of use in electrical engineering, industry, research and development.

•High-resolution TFT color display with 800 x 600 pixels

•20 cm (8") TFT color display

•LAN, WiFi & USB port for real time data transmission

•Saving of measured values and graphics directly onto the USB-disk

•Use the optional battery (Model: Akku 6) for off-grid operation

•Use the W-LAN interface for remote control in dangerous areas

•Integrated 2-Channel 25 MHz Arbitrary Waveform Generator

•Integrated digital multimeter with 4000 counts

•Extended trigger for CAN-Bus, RS232, I2C, SPI

•Handy and flat case design with carrying handle

•Autoset function for easy operation

•Record lenght of max. 40 Mio. points

•Automatic measurement modes and FFT function

•Safety: EN 61010-1, CAT II

Technical specifications
Number of channels 4
Bandwidth 100 MHz
Version touchscreen oscilloscope
Sample Rate 1 GSa/s
Display 8" TFT
Rise time 3.5 s
Weight 2.6 kg
Length 90 mm
Width 340 mm
Height 175 mm
Category Cat II
Logistics
Country of origin CN
Customs tariff number 90302000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
