2-channel PC oscilloscope P 1286, 100 MHz, 1 GSa/s, 3.5 ns
Order No.: 24K5796
EAN: 4250569406805
MPN:
P 1286
1286
Unit Price (€ / pc.)
429.5067 € *
Standard delivery time from the manufacturer is: 2 Weeks

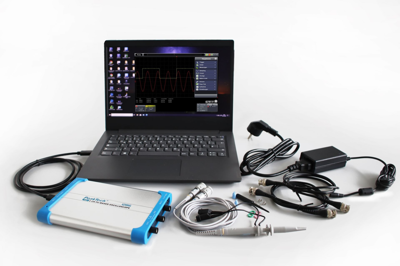

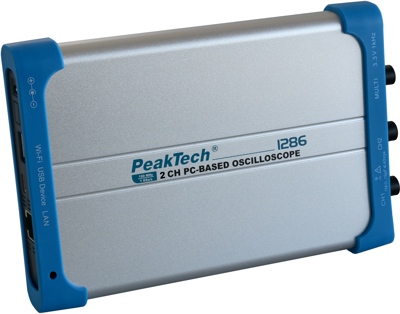

PC oscilloscope, 1286, PeakTech
This small and powerful PC oscilloscope is ideal for mobile use on a laptop or for permanent installation in control cabinets. For fast display of any incoming waveform, one press of the autoset button is enough and the oscilloscope itself will search for the best possible display. Of course, all models in this series have an XY mode and an FFT function. Data transfer to the PC takes place via an isolated LAN connection or the USB interface, whereby the unit is directly supplied with the necessary voltage via USB.
Features
- 2-channel 100 MHz PC oscilloscope with 1 GS/s sampling rate
- Memory length of 10 million points per channel
- Isolated LAN connection for data transmission with power supply for power supply
- USB connection for data transmission and power supply
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Bandwidth | 100 MHz | |
| Sample Rate | 1 GSa/s | |
| Width | 18 mm | |
| Number of channels | 2 | |
| Height | 120 mm | |
| Rise time | 3.5 s | |
| Weight | 380 g | |
| Version | oscilloscope | |
| Length | 190 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90302000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
