2-channel touchscreen oscilloscope P 1206, 70 MHz, 1 GSa/s, 8" TFT, 5 ns
NCNR (non cancelable / non returnable)
Oscilloscope, 1206, PeakTech

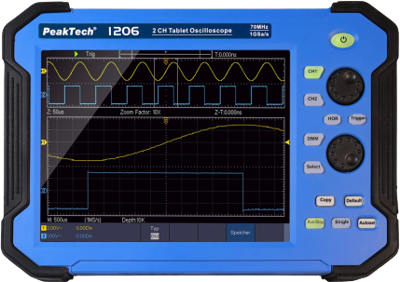

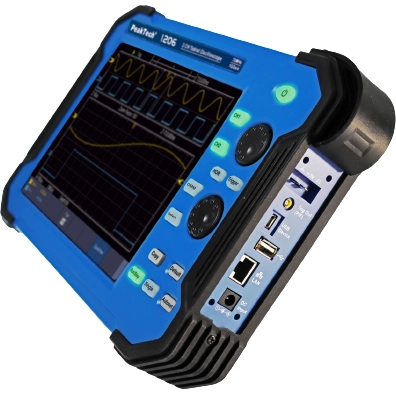

The 1206 is a new, innovative oscilloscope, which is based on the size and design of a standard tablet. With the tablet oscilloscope it is possible to record each normal measured variable and measurement form as with a stationary oscilloscope. This product is a two-channel oscilloscope, it has a bandwidth of 70 MHz and it is able to perform various measurements with a sampling rate of up to 1 GS/s. The built-in multimeter makes it possible to significantly expand the area of application of the oscilloscope. Settings can be made quickly and precisely with the 8 inch touchscreen, but also with the function keys. The 1206 is a tablet oscilloscope, which is used in almost all areas of electrical engineering due to its mobility and excellent application possibilities.
Features
- Autoset function for user-friendly operation
- Recording length of max. 40 million points
- Automatic measurement modes, XY mode and FFT function
| Filter | Property | Value |
|---|---|---|
| Number of channels | 2 | |
| Bandwidth | 70 MHz | |
| Version | oscilloscope | |
| Sample Rate | 1 GSa/s | |
| Display | 8" TFT | |
| Rise time | 5 s | |
| Weight | 1.7 kg | |
| Length | 270 mm | |
| Width | 48 mm | |
| Height | 191 mm | |
| Category | CAT II |
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90302000 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
