P 1195 | PeakTech

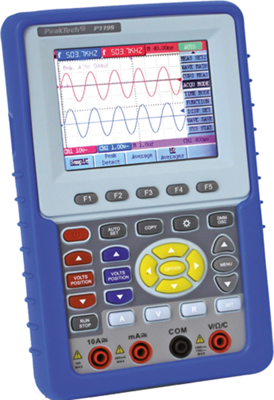

2-channel hand-held oscilloscope P 1195, 100 MHz, 100 MSa/s, 3.8" TFT, 5.8 ns

Order No.: 20K595
EAN: 4099891458614
MPN:
P 1195
1195
P 1195 PeakTech Oscilloscopes
Image may differ
Unit Price (€ / pc.)
1,092.1939 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1,092.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,092.1939 €

Digital storage oscilloscopes, type PeakTech 1195.

100 MHz 2-channel oscilloscopes with True RMS multimeter; Sampling rate: 250 MS/s. Input voltage: max. 400 Vpp. Sampling range: 10 S/s to 100 MS/s. Tolerance: 100 ppm. Vertical resolution: 8.0 bits. Sensitivity: 5.0 mV/div to 5.0 V/div. Storage capacity: 6K (4 trends, 4 settings), video trigger function with trigger sensitivity optimization. Auto-Range and Auto-Setup function in oscilloscope mode, USB port for USB sticks, 5.0 V/1 kHz output for test probe calibration. Multimeter measuring ranges: 400 mV DC to 400 VDC, 4.0 to 400 VAC, 40 to 400 Hz, 40 mA UC to 10 A UC, 400 ohm to 40 Mohm, 51.2 nF to 100 µF. Display: TFT (640 x 480 pixels, 65535 colors). Safety: EN 61010-1, CAT II 400 V. Operation: 7.4 V/3500 mA Li-Ion accumulator or power supply. Dimensions: W 115, H 180, D 40 mm. Weight: 650 g. Supplied with power adapter, 2 test probes, test leads, expansion module for measuring capacitance, patch cable for USB stick, USB interface cable, software CD for Windows 2000/XP/Vista, carrying case, operating instructions.

Type: 1195, oscilloscope

Technical specifications
Filter Property Value
Number of channels 2
Bandwidth 100 MHz
Version hand-held oscilloscope
Sample Rate 100 MSa/s
Display 3.8" TFT
Rise time 5.8 s
Weight 650 g
Length 40 mm
Width 115 mm
Height 180 mm
Category Cat II
Logistics
Property Value
Country of origin CN
Customs tariff number 90302000
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
