P 4096 | PeakTech
TRMS digital bench multimeter P 4096, 10 A(DC), 10 A(AC), 1000 VDC, 750 VAC, 2 nF to 10000 µF, CAT I 1000 V, CAT II 600 V
NCNR (non cancelable / non returnable)

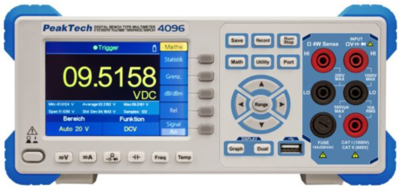

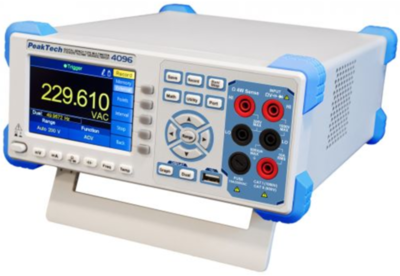

Digital table multimeter, 4096, PeakTech

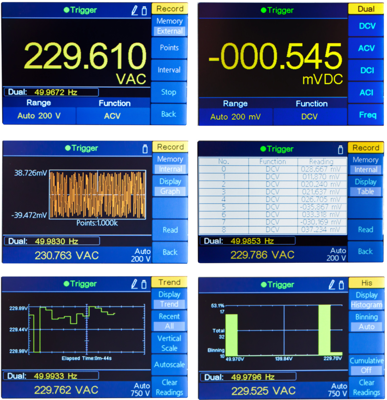

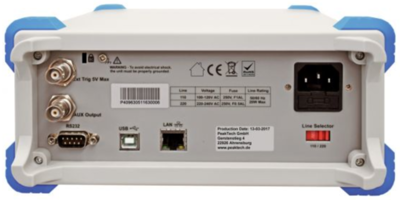

Newly developed precision bench multimeter with TFT graphic display for high resolution display of measured values, history curves, function graphs and more up to 150 measurements/second. This model is equipped according to the latest technical standards and has a wide range of special functions, such as dual measurement of two different measurement functions, an internal or external data logger, histogram, dB, pass/fail, thermal resistor or thermocouple measurements, history curves, function graphs, average measurements or bar graphs. The versatile functions are completed by true RMS measurements up to 100kHz. For control via software or SCPI protocol, the model has USB, RS-232 or even a LAN interface for network integration.
Features
- 5 1/2-digit (200,000) 4" TFT graphic display (480x320 pixels)
- Up to 150 readings / second
- Data logger up to 1 million points (internal) or 100 million points (external) / 5ms interval
- True RMS measurement up to 100 kHz - depending on measurement function
| Filter | Property | Value |
|---|---|---|
| Version | digital bench multimeter | |
| TRMS possible | Yes | |
| max. measured current value (DC) | 10 A | |
| max. measured current value (AC) | 10 A | |
| max. voltage measuring range (DC) | 1000 V | |
| max. voltage measuring range (AC) | 750 V | |
| Capacity range | 2 nF to 10000 µF | |
| max. resistance range | 100 MΩ | |
| Surge voltage category | CAT I 1000 V, CAT II 600 V | |
| Display Digits | 2000 |
| Property | Value |
|---|---|
| Customs tariff number | 90303200 |
| Country of origin | CN |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
