P 4094 | PeakTech

Name: TRMS digital bench multimeter P 4094, 10 A(DC), 10 A(AC), 1000 VDC, 750 VAC, 50 nF to 50 mF, CAT I 1000 V, CAT II 600 V
Brand: PeakTech
SKU: 24K6112
Availability: InStock

TRMS digital bench multimeter P 4094, 10 A(DC), 10 A(AC), 1000 VDC, 750 VAC, 50 nF to 50 mF, CAT I 1000 V, CAT II 600 V

Order No.: 24K6112

EAN: 4250569405518

MPN:

P 4094

4094

Image may differ

Key Specification:

Version digital bench multimeter

TRMS possible Yes

max. measured current value (DC) 10 A

max. measured current value (AC) 10 A

max. voltage measuring range (DC) 1000 V

Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)

272.51 € *

Standard delivery time from the manufacturer is: 1 Week

Total Price:

272.51 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

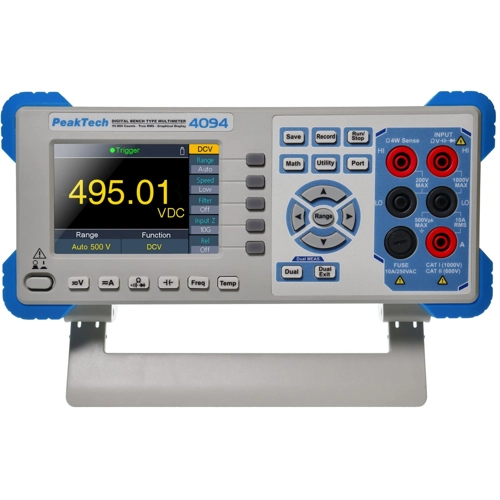

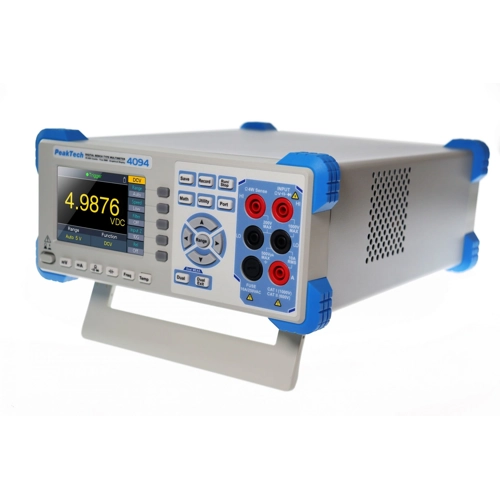

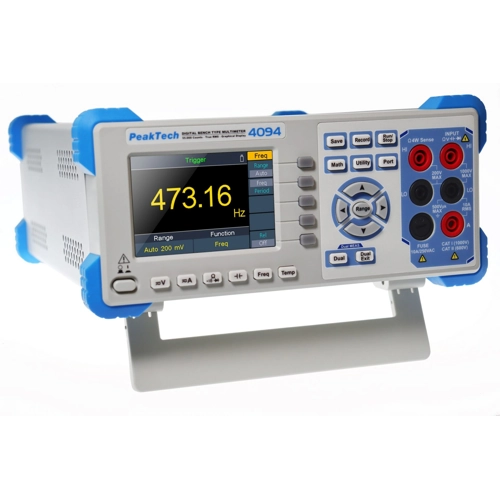

Graphical bench multimeter, P 4094, PeakTech

High precision benchtop multimeter with TFT graphic display for high-resolution display of the measured values with an excellent price / performance ratio. This model is equipped according to the latest technical standards and has a large number of special functions, such as the dual measurement of two different measuring functions, a measuring rate of up to 65 measurements / second and many other graphical representations or mathematical functions. The versatile functions are completed by the True RMS value (TrueRMS) measurements up to 1 kHz. The model has an RS-232 interface for control via software or the SCPI protocol.

Features

Internal data recording for up to 1000 measuring points
Minimum, maximum and measured value hold function
AVG average measurement and relative value function
dB and dBm measuring function for ACV and DCV measuring range
Dual function for simultaneous measurement of two measuring functions
Diode test & continuity test
Control and data transfer possible via SCPI protocol

Content

Power cord
Interface cable
CD-ROM
Test leads
Operating instructions

Technical specifications

Filter	Property	Value
	Version	digital bench multimeter
	TRMS possible	Yes
	max. measured current value (DC)	10 A
	max. measured current value (AC)	10 A
	max. voltage measuring range (DC)	1000 V
	max. voltage measuring range (AC)	750 V
	Capacity range	50 nF to 50 mF
	max. resistance range	50 MΩ
	Surge voltage category	CAT I 1000 V, CAT II 600 V
	Display Digits	55000
