P 3705 | PeakTech
Digital multimeter P 3705, 200 pF to 20000 µF, CAT II
Order No.: 24K1048
EAN: 4250569400957
MPN:
P 3705
3705
Unit Price (€ / pc.)
46.7194 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
46.72 € *
Price list
Quantity
Price per unit*
1 pcs.
46.7194 €
5 pcs.
43.9110 €
10 pcs.
42.2569 €
20 pcs.
39.3057 €
*incl. VAT plus shipping costs
Subject to prior sale

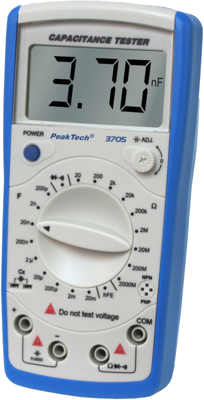

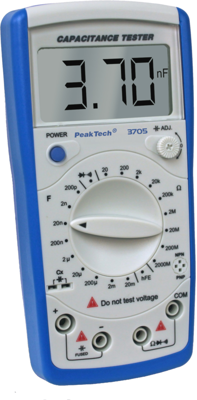

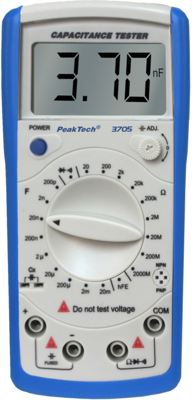

Digital capacitance meters, type PeakTech 3705.
With 3 1/2-digit display; features: diode and continuity test, transistor test (hFE test). Capacitance: to 20 mF (±0.5 %). Resistance: to 2000 Mohm (±0.8 %), safety: IEC-1010-1, CAT II. Dimensions: 83 x 172 x 38 mm. Weight: 310 g. Supplied with holster, 9.0-V battery and test leads.
Type: 3705, digital capacitance meter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Display Digits | 2000 | |
| Version | digital multimeter | |
| Surge voltage category | CAT II | |
| Capacity range | 200 pF to 20000 µF | |
| TRMS possible | No | |
| max. resistance range | 2 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
