P 3450 A | PeakTech

Name: TRMS multimeter P 3450 A, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 60 nF to 6000 µF, CAT III 1000 V, CAT IV 600 V
Brand: PeakTech
SKU: 24K6111
Availability: InStock

TRMS multimeter P 3450 A, 10 A(DC), 10 A(AC), 1000 VDC, 1000 VAC, 60 nF to 6000 µF, CAT III 1000 V, CAT IV 600 V

Order No.: 24K6111

EAN: 4250569407338

MPN:

P 3450 A

3450 A

Image may differ

Key Specification:

Version multimeter

TRMS possible Yes

max. measured current value (DC) 10 A

max. measured current value (AC) 10 A

max. voltage measuring range (DC) 1000 V

Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)

677.11 € *

Standard delivery time from the manufacturer is: 1 Week

Total Price:

677.11 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

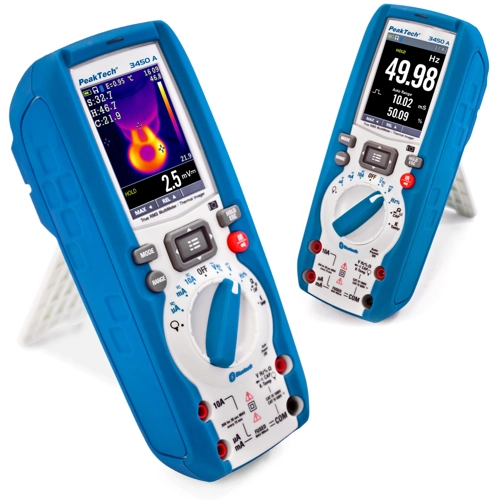

TrueRMS multimeter & thermal imaging camera, P 3450 A, PeakTech

This new combination of the latest True RMS graphic multimeter and responsive thermal imaging camera enables professional use in all areas of electrical engineering. The multimeter has many various functions to carry out precise measurements, which you can log automatically, save with a screenshot or record and process using an app for Android or iOS mobile devices. Switch the color TFT display between the pure multimeter display or a combined multimeter / thermal image display and use the graphical menu navigation to carry out all settings according to your requirements. The multi-meter display provides you with multi-line displays for current measured values, maximum / minimum or relative value measurements. The integrated thermal imaging camera offers a very fast sampling rate of 50 Hz to enable a smooth display when troubleshooting. The Thermal imaging camera of the PeakTech 3450 A uses a thermal image resolution of 120 x 120 pixels. Use the graphic menu to switch between different color palettes (gray & inv. / Iron / rainbow, etc.).

Features

Color display with 6.000 digits and backlight
Bluetooth interface and SD memory card
Graphic menu navigation and data logger with trend display
IP 65 dustproof and splashproof

Content

Battery and charger
Temperature sensor
Carrying case
SD card
Test leads
BT adapter
Software and manual

Technical specifications

Filter	Property	Value
	Version	multimeter
	TRMS possible	Yes
	max. measured current value (DC)	10 A
	max. measured current value (AC)	10 A
	max. voltage measuring range (DC)	1000 V
	max. voltage measuring range (AC)	1000 V
	Capacity range	60 nF to 6000 µF
	max. resistance range	60 MΩ
	Surge voltage category	CAT III 1000 V, CAT IV 600 V
	Display Digits	6000
