P 3350 | PeakTech

True RMS, 3350, PEAKTECH

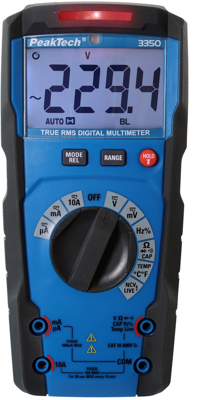

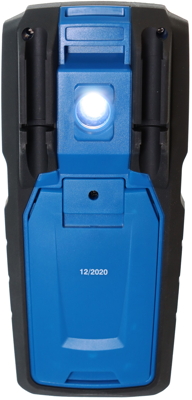

The 3350 was specially developed for use in the craftsmanship and industry and offers a variety of useful functions that simplify daily work, especially in dark or noisy environments. The lighting of the large LCD display is automatically activated by a photodiode in dark surroundings. On the back of the device, there is also a bright LED flashlight, which is used to illuminate the area where the measurement has to be taken. A multicolored LED bar is located above the 6000-digit display. Depending on the active measuring function, it lights up green during the continuity test, red when a voltage is found in NCV mode, yellow when measuring large capacities or flashes red when the phase tester mode is active. In addition to the comprehensive measuring functions for current & voltage, capacitance, resistance, frequency, continuity test and diode test, this device owns the functions to perform temperature measurements, non-contact voltage tests and phase tests. With the relative value mode and the data hold function, it is possible to make measurements accurate and precise.

Features

• True RMS voltage measurements up to 600 V and current measurements up to 10 A AC / DC
• 6.000 LCD display with automatic backlight
• Multi-colored warning LED for various measuring functions
• Automatic range selection
• Manual range selection possible using selection buttons
• Integrated LED flashlight for lighting the area where the measurement has to be taken
• Auto off and battery status display
• Safety: EN 61010-1; CAT III 600 V
