P 1070 | PeakTech
Digital multimeter P 1070, 10 A(DC), 10 A(AC), 300 VDC, 300 VAC, CAT III 300 V
Order No.: 21K500
EAN: 4250569400100
MPN:
P 1070
1070
Unit Price (€ / pc.)
19.1590 € *
Available: 12 pcs.
Total Price:
19.16 € *
Price list
Quantity
Price per unit*
1 pcs.
19.1590 €
10 pcs.
18.3974 €
*incl. VAT plus shipping costs
Subject to prior sale

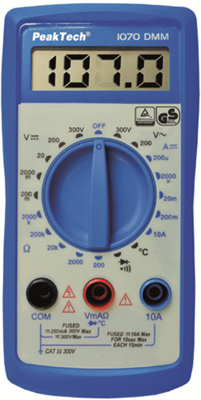

Digital multimeters, type PeakTech 1070.
3 1/2-digit LCD, 12 mm, with diode test and continuity check (buzzer); DC voltage: 200 mV to 300 V, tolerance ±0.8%. AC voltage: 200/300 V, tolerance ±1.2%. DC current: 200 µA to 10 A, tolerance ±1.0 %. Resistance: 200 ohm 2.0 Mohm, tolerance ±0.8%. Temperatures: 0 to 1000 °C, tolerance ±2.0 %. Safety: to EN 61010-1, CAT III 300 V. Dimensions: 70 x 140 x 30 mm. Weight: 120 g. Supplied with test leads, thermocouple type K, 9.0 V battery, and operating instructions.
Type: 1070, digital multimeter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. voltage measuring range (AC) | 300 V | |
| max. resistance range | 2 MΩ | |
| max. measured current value (DC) | 10 A | |
| Surge voltage category | CAT III 300 V | |
| max. measured current value (AC) | 10 A | |
| Display Digits | 2000 | |
| TRMS possible | No | |
| max. voltage measuring range (DC) | 300 V | |
| Version | digital multimeter |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
