P 1021 | PeakTech
TRMS multimeter P 1021, 400 mA(DC), 400 mA(AC), 600 VDC, 600 VAC, 40 nF to 4000 µF, CAT III 600 V
NCNR (non cancelable / non returnable)

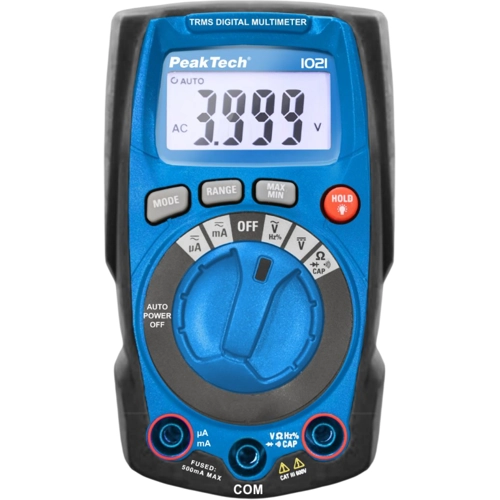

TrueRMS Digital Multimeter, P 1021, PeakTech
Compact and handy TRMS digital multimeter with 4000 counts and automatic range selection, ideal for service, trade, training and mobile use. The device enables precise measurements of DC and AC voltage, currents in the µA and mA range, resistances, capacitances, frequency and duty cycle, and also features diode and acoustic continuity testing. The large, clear display with data hold and min/max functions ensures comfortable working, while auto power off reduces battery consumption. A robust housing with a rubberised protective cover protects the multimeter in daily use. On the back, there is a practical service flap for quick replacement of the ceramic fuse and an integrated stand for hands-free reading of the measured values. The safety category CAT III up to 600 V makes the device a reliable companion for a wide range of measurement tasks.
Features
- Automatic range selection
- Service compartment and stand
- Handy and sturdy housing
Content
- Batteries and operating instructions
| Filter | Property | Value |
|---|---|---|
| Version | multimeter | |
| TRMS possible | Yes | |
| max. measured current value (DC) | 400 mA | |
| max. measured current value (AC) | 400 mA | |
| max. voltage measuring range (DC) | 600 V | |
| max. voltage measuring range (AC) | 600 V | |
| Capacity range | 40 nF to 4000 µF | |
| max. resistance range | 40 MΩ | |
| Surge voltage category | CAT III 600 V | |
| Display Digits | 4000 |
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303100 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
