P 7611 | PeakTech

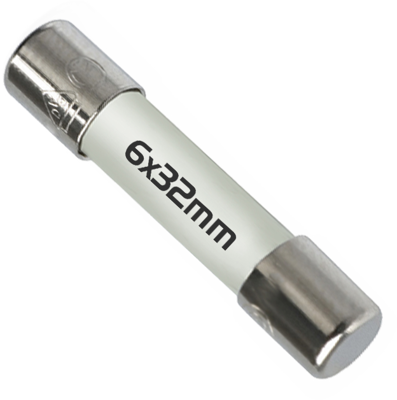

Microfuse 6.3 x 32 mm, 600 mA, FF, 1 kV (AC), P 7611
Order No.: 24K5677
EAN: 4099889083071
MPN:
P 7611
7611
Unit Price (€ / pc.)
4.2721 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
42.72 € *
Price list
Quantity
Price per unit*
10 pcs.
4.2721 €
50 pcs.
4.0222 €
*incl. VAT plus shipping costs
Subject to prior sale
Micro fuse, 7611, PEAKTECH
The 7611 is a modern device protection fuse with ceramic body that offers a much higher protection against damage to the meter when triggered than conventional glass fuses.
Features
- Very fast-acting
- High rated voltage
- Cartridge form
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | FF | |
| Length | 32 mm | |
| Enclosure | ceramic tube | |
| Rated current | 600 mA | |
| Design | 6.3 x 32 mm | |
| Rated voltage (AC) | 1 kV | |
| diameter | 6.3 mm | |
| Version | microfuse |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
