P 4165 | PeakTech
Arbitrary waveform generator, 1.0 µHz to 60 MHz, 250 MSa/s 14 bits, 4165
NCNR (non cancelable / non returnable)

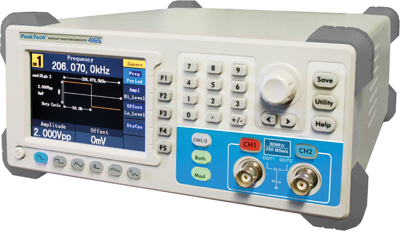

Arbitrary waveform generators PeakTech 4165.
With graphic menu control, TFT digital display (10 cm, 3.9"), two separate output channels, integrated waveform editor, channel coupling, Sweep and Burst function, menu-controlled frequency counter (200 MHz); Distortion: less than –40 dBc. Total distortion: less than 0.2 %. Sampling rate: 120 MSa/s, 14 bits, 4096 Pts: Sampling ratio: 0.1 to 99.9 %. Frequency resolution: 1.0 µHz. Amplitude range: 1.0 mVpp to 20 Vpp. Modulation modes: AM, FM, PSK, FSK, PM, PWM, SUM, ASK, BPSK. Interfaces: USB Host, USB Device, RS-232. Operating voltage: 100 to 240 VAC, 50/60 Hz. Safety: EN 61010-1. Dimensions: 235 x 110 x 295 mm. Weight: approx. 3.0 kg. Supplied with power cable, USB cable, BNC cable, and software.
Technical attributes (type, frequency range, output signals): 4165, 1.0 µHz to 60 MHz, 250 MSa/s 14 bits
| Filter | Property | Value |
|---|---|---|
| Frequency range | 1 µHz-60 MHz | |
| Signal generator | DDS | |
| Waveforms | sinus, square, ramp, noise, arbitrary waveform | |
| Display | TFT | |
| Interfaces | USB |
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85043180 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
