P 5225 | PeakTech
Ultrasonic Thickness Meter
NCNR (non cancelable / non returnable)
Ultrasonic Thickness Meter, 5225, PeakTech

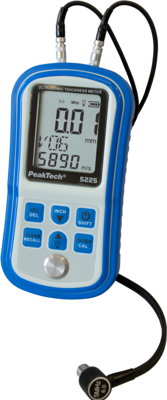

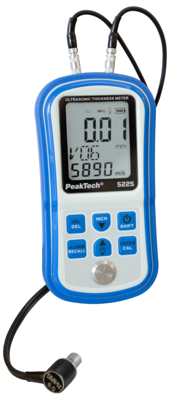

This newly-developed material thickness meter is microprocessor controlled and operates with the ultrasonic principle. Thus, the device can measure the material thicknesses of the most sound waves conductive materials on the basis of the speed of sound, such as e.g. Metal, glass, plastic, ceramic and more. For highest accuracy, the device offers a very high resolution of 0.1 mm and an auto-calibration function with a built in housing 4 mm metal plate.

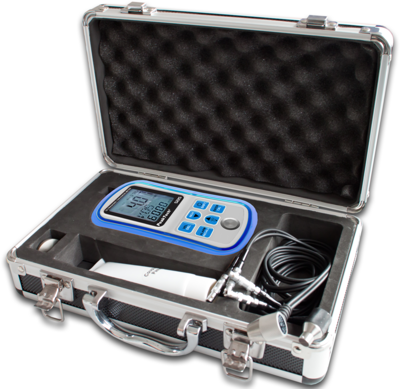

The instrument is equipped with two sensors for different material thicknesses which permit measurements of 1 mm to 300 mm at 5 MHz frequency sound. For best protection, the wide range of accessories is stored in an aluminum carrying case. Thus, the device is ideal for everyday use in the evaluation of material thicknesses in shipbuilding, the metal and pipeline construction or production of goods.
| Filter | Property | Value |
|---|---|---|
| Product type | ultrasonic material thickness gauge | |
| measurement range | 1 to 300 mm | |
| Accuracy | ±1 % | |
| Resolution | 0.01 mm |
| Property | Value |
|---|---|
| Customs tariff number | 90318020 |
| Country of origin | CN |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
