P 4205 | PeakTech
AC flexible current clamp P 4205, 3000 A (AC), CAT III 1000 V, CAT IV 600 V
Order No.: 24K5799
EAN: 4250569406683
MPN:
P 4205
4205
Unit Price (€ / pc.)
78.778 € *
Standard delivery time from the manufacturer is: 2 Weeks

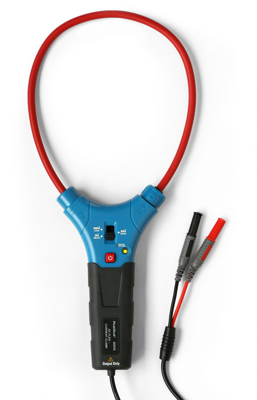

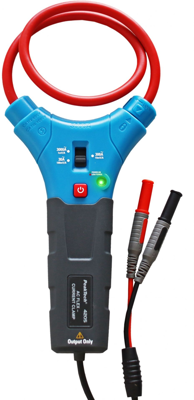

Flexible current clamp, 4205, PeakTech

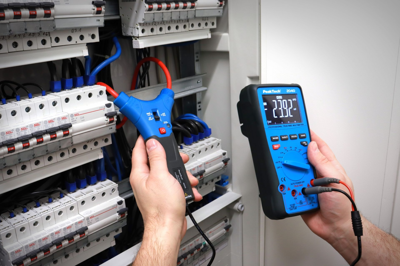

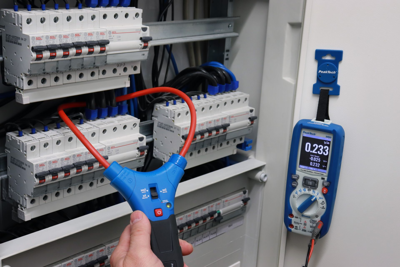

This innovative current clamp works on the principle of being able to carry out current measurements safely and quickly in conjunction with a multimeter. Due to the flexible design of the clamp opening, it is possible to insert small but also large cable diameters into the opening. By means of the slide switch, it is possible to set the measuring ranges of the current clamp between 30 / 300 and 3000 A AC. Due to the intuitive design of the device, this current clamp is suitable for all areas in which currents have to be measured, whether in the hobby area or for professional use in industry.
Features
- Maximum cable diameter of up to 160 mm
- Flexible current clamp lock
Technical specifications
| Filter | Property | Value |
|---|---|---|
| TRMS possible | No | |
| min. Measured value (frequency) | 50 Hz | |
| max. measured current value (AC) | 3000 A | |
| max. measured value (frequency) | 400 Hz | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V | |
| Product type | AC flexible current clamp |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
