P 1670 | PeakTech

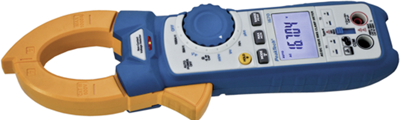

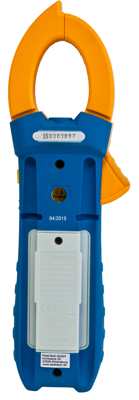

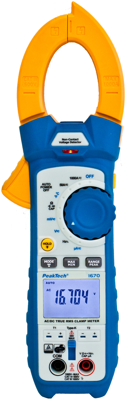

Name: TRMS AC/DC current clamp P 1670, 1000 A (DC), 1000 A (AC), 600 V (DC), 600 V (AC), opening 48 mm, CAT III 1000 V, CAT IV 600 V
Brand: PeakTech
SKU: 22K7828
Availability: InStock

TRMS AC/DC current clamp P 1670, 1000 A (DC), 1000 A (AC), 600 V (DC), 600 V (AC), opening 48 mm, CAT III 1000 V, CAT IV 600 V

Order No.: 22K7828

EAN: 4250569403309

MPN:

P 1670

1670

Image may differ

Key Specification:

Product type AC/DC current clamp

TRMS possible Yes

Pliers opening 48 mm

Surge voltage category CAT III 1000 V, CAT IV 600 V

Show variants: 11

Download Datasheet Technical specifications

Unit Price (€ / pc.)

174.6682 € *

Standard delivery time from the manufacturer is: 4 Weeks

Total Price:

174.67 € *

Price list

Quantity

Price per unit*

1 pcs.

174.6682 €

3 pcs.

169.4203 €

10 pcs.

163.6131 €

25 pcs.

159.2339 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Digital Clamp Meter, 1670, PeakTech

This new professional digital clamp meter for measurements up to 1000 A AC/DC offers a wide range of functions and is particularly impressive through the rugged, rubberized and ergonomically shaped case that ensures safe handling during the measurement and is also suitable for use in the industrial sector.

Technical Data

Surge voltage category: CAT III 1000 V
max. measured current value (AC): 1.000 A
max. measured current value (DC): 1.000 A
max. voltage measuring range (AC): 750 V
max. voltage measuring range (DC): 1.000 V

Technical specifications

Filter	Property	Value
	max. measured current value (DC)	1000 A
	max. resistance range	50 MΩ
	min. Measured value (frequency)	50 Hz
	Surge voltage category	CAT III 1000 V, CAT IV 600 V
	max. voltage measuring range (DC)	600 V
	max. voltage measuring range (AC)	600 V
	Pliers opening	48 mm
	max. measured current value (AC)	1000 A
	TRMS possible	Yes
	Product type	AC/DC current clamp
	max. measured value (frequency)	10 MHz
