P 1665 | PeakTech
TRMS AC/DC current clamp P 1665, 100 A (AC), 100 V (DC), CAT III 1000 V, CAT IV 600 V
Order No.: 24K5552
EAN: 4099891457594
MPN:
P 1665
1665
Unit Price (€ / pc.)
152.8198 € *
Standard delivery time from the manufacturer is: 2 Weeks

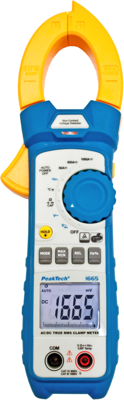

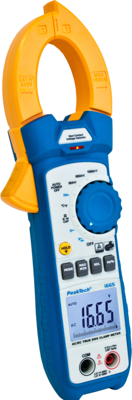

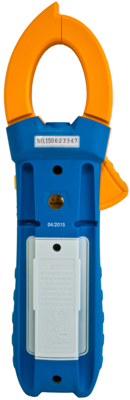

True RMS current clamp meter, 1665, PeakTech
Current clamps are ideally suited for current measurement in electrical systems and control cabinets, since only individual wires are passed through the clamp jaws for non-contact current measurement and no electrical connections have to be cut. This method also makes it possible to measure very high currents, which would overload any commercially available multimeter if they were connected directly.
Features
- 3 5/6 -digit LCD display (max. 6000)
- True rms measurement (True RMS)
- Conductor diameter: 48 mm max.
- LED flashlight for measuring point illumination
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. resistance range | 60 MΩ | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V | |
| max. voltage measuring range (DC) | 100 V | |
| max. measured current value (AC) | 100 A | |
| TRMS possible | Yes | |
| Product type | AC/DC current clamp | |
| max. measured value (frequency) | 10 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
