P 1660 | PeakTech
TRMS power amperemeter P 1660, 1000 A (AC), 750 V (AC), opening 55 mm, CAT III 1000 V, CAT IV 600 V
Order No.: 22K7724
EAN: 4099891457532
MPN:
P 1660
1660
Unit Price (€ / pc.)
185.5924 € *
Available: 0 pcs.
Leadtime: On Request **

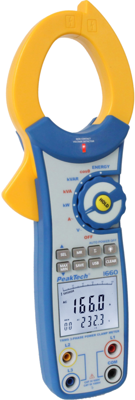

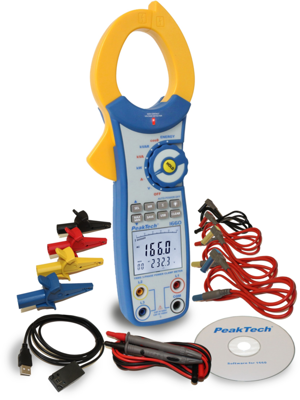

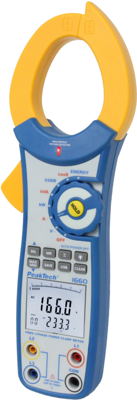

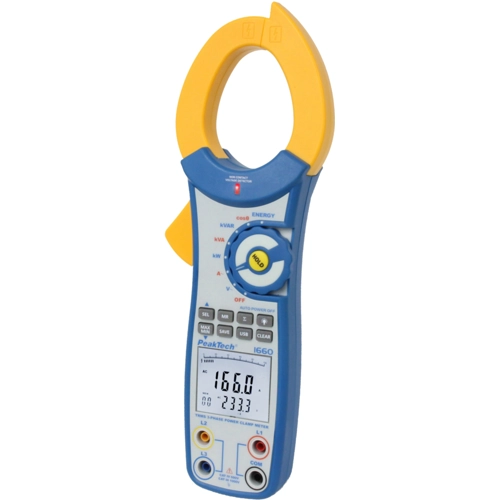

Power current clamp meter, P 1660, PeakTech
The PeakTech 1660 is a 1- and 3-phase TrueRMS AC current clamp with many additional functions, such as measurements for alternating current (ACA), alternating voltage (ACV), active power (kW), apparent power, (kVA), reactive power (kVAR), energy (kWh), the power factor (Cosφ), frequency (Hz), phase angle (°). All measured values can be read on the illuminated LCD display even in poorly lit rooms.
Features
- 4-digit LCD display (max. display: 9999) with backlight and 42-segment bar graph
- USB 2.0 interface
- Min/max and measurement hold function
- Auto power off and battery level indicator
- AC current measurement up to 1000 A AC
Technical specifications
| min. Measured value (frequency) | 20 Hz | |
| Surge voltage category | CAT III 1000 V, CAT IV 600 V | |
| max. voltage measuring range (AC) | 750 V | |
| Pliers opening | 55 mm | |
| Product type | power amperemeter | |
| TRMS possible | Yes | |
| max. measured value (frequency) | 200 Hz | |
| max. measured current value (AC) | 1000 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 90303100 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
