P 1625 | PeakTech

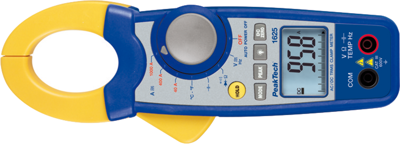

AC/DC current clamp P 1625, 1000 A (DC), 1000 A (AC), 600 V (DC), 600 V (AC), opening 31 mm, CAT III 600 V
Order No.: 22K7710
EAN: 4099891457501
MPN:
P 1625
1625
Unit Price (€ / pc.)
156.485 € *
Standard delivery time from the manufacturer is: 2 Weeks
Current Clamp Meter, P 1625, PeakTech
Current clamps are ideally suited for current measurement in electrical systems and control cabinets, since only individual wires are passed through the clamp jaws for contactless current measurement and no electrical connections have to be severed. This method also makes it possible to measure very high currents, which would overload any commercially available multimeter if they were connected directly.
Features
- 3 ¾-digit, 15 mm LCD display, max. display: 3999, 42-segment analog bar graph
- True RMS value
- Automatic range selection
- Backlight
- AC/DC current: 1000 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. measured current value (DC) | 1000 A | |
| max. resistance range | 40 MΩ | |
| Surge voltage category | CAT III 600 V | |
| max. voltage measuring range (DC) | 600 V | |
| max. voltage measuring range (AC) | 600 V | |
| Pliers opening | 31 mm | |
| max. measured current value (AC) | 1000 A | |
| TRMS possible | No | |
| Product type | AC/DC current clamp | |
| max. measured value (frequency) | 4 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
