P 1615 | PeakTech
AC/DC current clamp P 1615, 1000 A (DC), 1000 A (AC), 600 V (DC), 600 V (AC), opening 31 mm, CAT III 600 V
Order No.: 22K7705
EAN: 4099891457495
MPN:
P 1615
1615
Unit Price (€ / pc.)
108.0282 € *
Standard delivery time from the manufacturer is: 2 Weeks

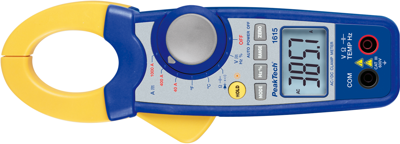

Current clamp meter, P 1615, PeakTech
Current clamps are ideally suited for current measurement in electrical systems and control cabinets, since only individual wires are passed through the clamp jaws for contactless current measurement and no electrical connections have to be cut. This method also makes it possible to measure very high currents, which would overload any commercially available multimeter if they were connected directly.
Features
- 3 ¾-digit, 17 mm LCD display, max. display: 3999
- Automatic and manual range selection
- Measured value hold function
- Backlight
- AC/DC current: 1000 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. measured current value (DC) | 1000 A | |
| max. resistance range | 40 MΩ | |
| min. Measured value (frequency) | 5 Hz | |
| Surge voltage category | CAT III 600 V | |
| max. voltage measuring range (DC) | 600 V | |
| max. voltage measuring range (AC) | 600 V | |
| Pliers opening | 31 mm | |
| max. measured current value (AC) | 1000 A | |
| TRMS possible | No | |
| Product type | AC/DC current clamp | |
| max. measured value (frequency) | 100 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
