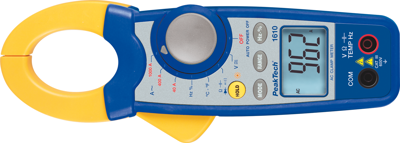

AC current clamp P 1610, 1000 A (AC), 600 V (DC), 600 V (AC), opening 35 mm, CAT III 600 V
AC/DC digital clamp meters, type PeakTech 1610.
With 17 mm, 3 3/4-digit LCD and rugged, ergonomic housing; Features: blue background lighting, measured value Hold, auto-ranging and manual range selection, Auto-Off, diode test and continuity check function. Conductor diameter: max. 31 mm. Safety: IEC-1010-1, CAT III 600 V. AC current: up to 1000 A, tolerance ±2.5%. DC voltage: up to 600 V, tolerance ±0.8%. AC voltage: up to 600 V, tolerance ±1.8%. Resistance: up to 40 Mohm, tolerance ±1.0 %. Capacitance: up to 100 µF, tolerance ±3.0 %. Frequency: up to 10 MHz, tolerance ±1.2 %. Temperature: –50 to +1000 °C, tolerance ±3.0 %. Dimensions: 80 x 230 x 50 mm. Weight: 300 g. Supplied with block battery, thermocouple type K, protective bag and test leads.
Type: 1610, AC/DC digital clamp meter
| Filter | Property | Value |
|---|---|---|
| max. voltage measuring range (AC) | 600 V | |
| Surge voltage category | CAT III 600 V | |
| min. Measured value (frequency) | 5 Hz | |
| max. measured value (frequency) | 100 MHz | |
| max. voltage measuring range (DC) | 600 V | |
| TRMS possible | No | |
| max. measured current value (AC) | 1000 A | |
| Product type | AC current clamp | |
| Pliers opening | 35 mm | |
| max. resistance range | 40 MΩ |
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90303100 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
