P 6227 | PeakTech

PeakTech® 6227

DC switching power supply 0-60 V / 0-6 A with color LCD & 2 x USB

This newly developed laboratory power supply offers a controllable 0...60V or 0...6A DC main output with a maximum continuous power of 150W. For developers, this laboratory power supply offers two switchable USB outputs with their own LCD display with voltage and current values.

If you use a load up to 2.5A, you can set the output voltage up to 60V. If you want to use a higher current up to 6A, set the load to a maximum of 25V. Of course, all stages are also adjustable in between, e.g. 30V/5A, 40V/3.7A or 50V/3A.

The current and voltage setting also can be done when the output is switched off. By pressing the knob for current or voltage, the setting resolution can be fine/coarse switched from 1mA to 100mA or 10mV to 1V.

Due to the high range of functions and the simple operation with the best price-performance ratio, this laboratory power supply is ideal for the education, hobby, development and service sector.

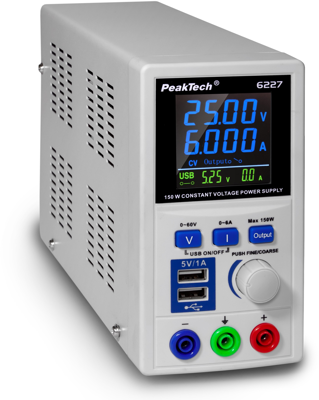

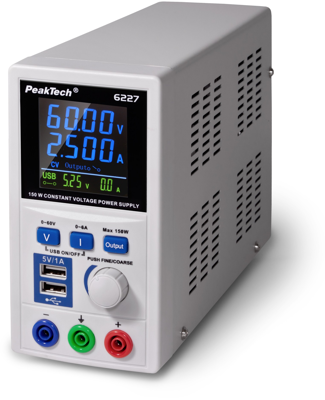

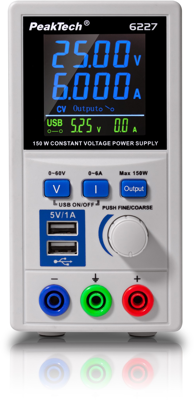

• Blue LCD display showing the output voltage and current values
• Green LCD display showing the USB output voltage and current values
• 150W constant output power
• Adjustable voltage range: 0~60V at 0~2.5A and 0~25V at 2.5~6A
• Voltage and current pre-selection with switchable output
• C.C. (Constant Current) and C.V. (Constant Voltage) mode with connected load
• Protection against short circuit, overload and overtemperature
• Safety: EN 61010-1

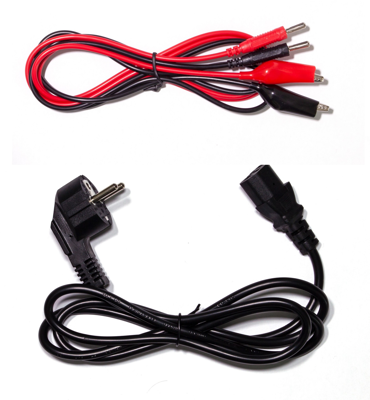

• Accessories: Power cable, Connection Leads and Manual
