P 6226 | PeakTech

Lab Power Supply 0-30 V/ 10 A DC

Order No.: 24K3551
EAN: 4250569403705
MPN:
P 6226
6226

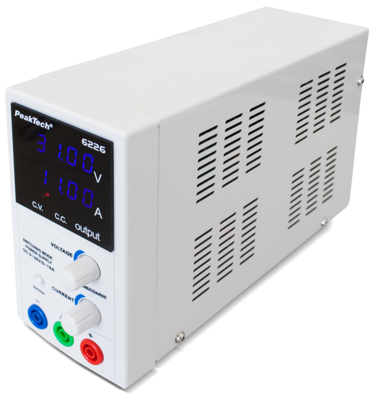

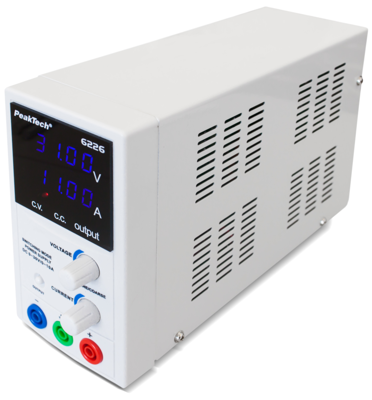

P 6226 PeakTech Bench Power Supplies and Loads Image 1

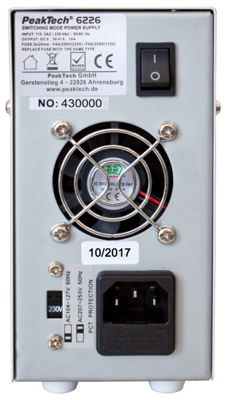

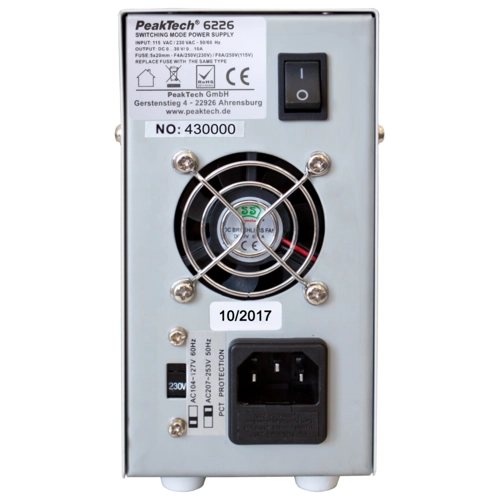

P 6226 PeakTech Bench Power Supplies and Loads Image 2

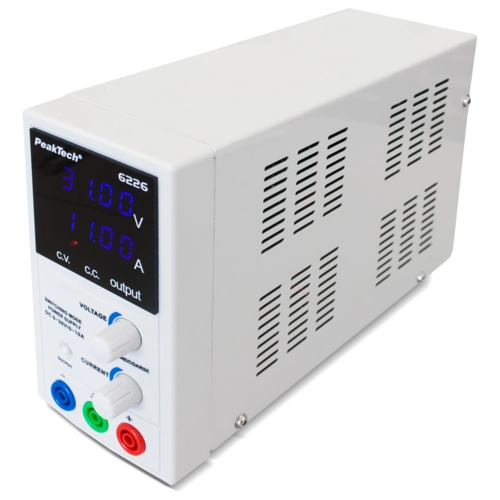

P 6226 PeakTech Bench Power Supplies and Loads Image 3

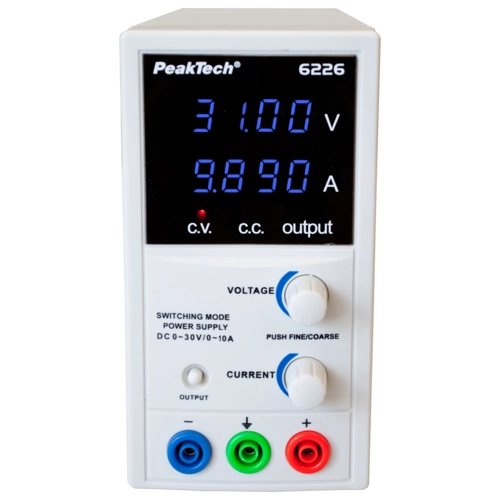

P 6226 PeakTech Bench Power Supplies and Loads Image 4

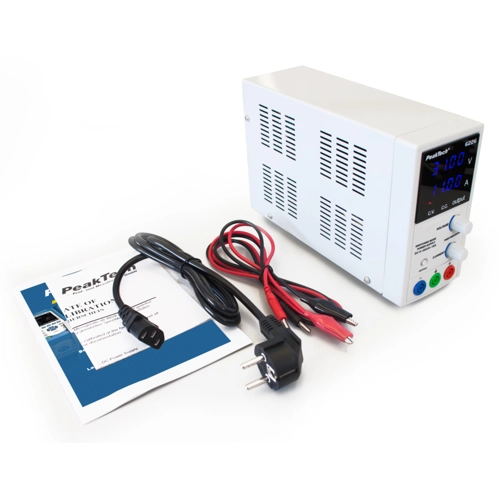

P 6226 PeakTech Bench Power Supplies and Loads Image 5
Image may differ
Unit Price (€ / pc.)
138.5041 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
138.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
138.5041 €

This switching mode power supply is ideal of its very handy shape and low weight for applications in the development and education area.

The current and voltage are adjusted by digital potentiometers, whereby both values can also be adjusted when the output sockets are switched off. By pressing the respective switch, the setting solution can be switched from 10mA to 100mA or 10mV to 1V.

The high visibility of the display, the easy operation and low weight, as well as the slim design are excellent conditions for use in education and service area.

•Blue LED display to show the output voltage - and current values

•Adjustable voltage range: 0 ~ 30 V, Current range: 0 ~ 10 A

•Voltage and current pre-selection with switchable output

•C.C. (Constant Current) and C.V. (Constant Voltage) mode with connected load

•Protection against short circuit, overload and overtemperature

•Automatic shutdown at short circuit as protection

•Safety: EN 61010-1

Technical specifications
Input voltage AC 110-240 VAC
Number of outputs 1
Range of Output Currence 0 to 10 A
Output voltage DC 30 VDC
Width 78 mm
Depth 255 mm
Power 300 W
Output current 10 A
Height 160 mm
Logistics
Country of origin CN
Customs tariff number 85044083
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
