P 6225 A | PeakTech
Laboratory power supply, 30 VDC, outputs: 1 (5 A), 0 to 5 A, 150 W, 220-240 VAC, P 6225 A
Order No.: 24K3549
EAN: 4250569402999
MPN:
P 6225 A
6225 A
Unit Price (€ / pc.)
89.25 € *
Available: 11 pcs.

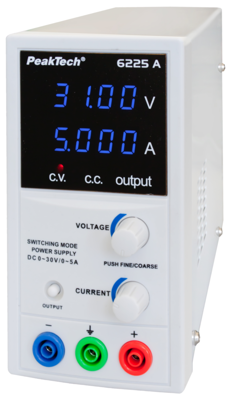

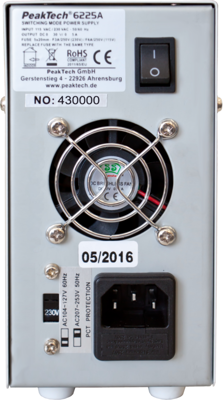

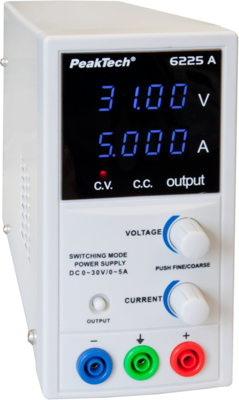

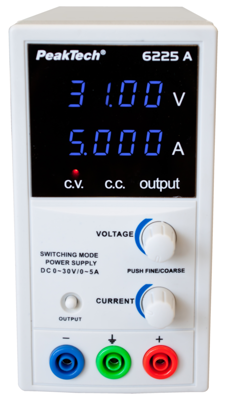

Laboratory power supply PeakTech 6225A
Development and training resource
blue LED display for output voltage and current values
Operating voltage: 200 to 240 VAC, 50/60 Hz
Output voltage: 1,0 to 30 VDC
Output current: 0 to 5.0 A
Residual ripple: 50 mVpp
Efficiency: to 85 %
Safety: EN 61010-1
Dimensions: 70 x 160 x 220 mm
Weight: 1.4 kg
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 255 mm | |
| Height | 160 mm | |
| efficiency | 85 % | |
| Output current | 5 A | |
| Width | 78 mm | |
| Range of Output Currence | 0 to 5 A | |
| Number of outputs | 1 | |
| Power | 150 W | |
| Output voltage DC | 30 VDC | |
| Input voltage AC | 220-240 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
