P 6215 | PeakTech

Laboratory power supply, 30 VDC, outputs: 4 (5 A/5 A/3 A), 0 to 5 A, 150 W, 100-240 VAC, P 6215

Order No.: 24K3546

EAN: 4250569402272

MPN:

P 6215

6215

Image may differ

Key Specification:

Output voltage DC 30 VDC

Output current 5 A

Output current 2 5 A

Output current 3 3 A

Range of Output Currence 0 to 5 A

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Laboratory power supply, 30 VDC, outputs: 3 (5 A/5 A/1 A), 0 to 5 A, 150 W, 115-230 VAC, P 6210

Order No.: 24K3544

Manufacturer: PeakTech

per pc. 272.51 € *

Go to product

*incl. VAT plus shipping costs

Description

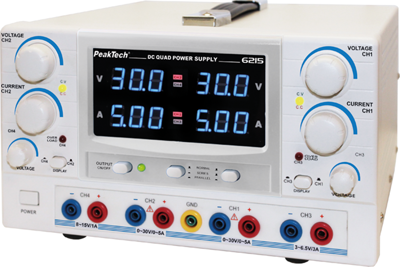

Laboratory power supplies, type PeakTech 62.

In stable metal enclosure with handle, high load stability and low residual ripple. Overload protection, short circuit-proof, 4.0 mm safety sockets on all outputs, 3-digit 14 mm, blue LED digital display; Input voltage: 115/230 VAC, 50/60 Hz. Residual ripple: less than 1.0 mV rms, less than 3.0 mA rms.

Laboratory power supplies, type 6215.

Output 1: 0 to 30 VDC, 0 to 5.0 A. Output 2: 0 to 30 VDC, 0 to 5.0 A. Output 3: 3.0 to 6.5 VDC, 3.0 A. Output 4 : 8.0 to 15 VDC, 1.0 A. Output power: 2 x 150 W, 1 x 20 W, 1 x 15 W. Dimensions: 255 x 160 x 310 mm. Weight: 9.0 kg.

Type: 6215, laboratory power supply

Technical specifications

Filter	Property	Value
	Output voltage DC	30 VDC
	Output current	5 A
	Output current 2	5 A
	Output current 3	3 A
	Range of Output Currence	0 to 5 A
	Power	150 W
	Input voltage AC	100-240 VAC
	Number of outputs	4
	Width	255 mm
	Height	160 mm
	Depth	310 mm
