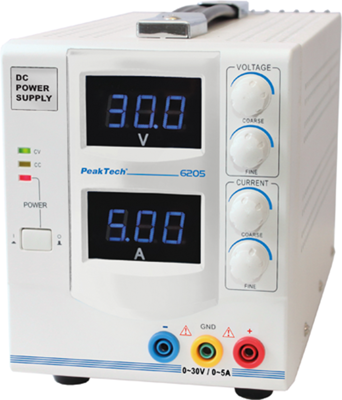

P 6205 | PeakTech
Laboratory power supply, 30 VDC, outputs: 1 (5 A), 0 to 5 A, 150 W, 115-230 VAC, P 6205
Order No.: 24K3542
EAN: 4250569402258
MPN:
P 6205
6205
Discontinued
Unit Price (€ / pc.)
159.341 € *
Available: 1 pcs.
Total Price:
159.34 € *
Price list
Quantity
Price per unit*
1 pcs.
159.341 €
5 pcs.
152.915 €
*incl. VAT plus shipping costs
Subject to prior sale
Laboratory power supplies, type PeakTech 62.
In stable metal enclosure with handle, high load stability and low residual ripple. Overload protection, short circuit-proof, 4.0 mm safety sockets on all outputs, 3-digit 14 mm, blue LED digital display; Input voltage: 115/230 VAC, 50/60 Hz. Residual ripple: less than 1.0 mV rms, less than 3.0 mA rms.
Laboratory power supplies, type 6205.
Output: 0 to 30 VDC, 0 to 5.0 A. Output power: 150 W. Dimensions: 130 x 165 x 320 mm. Weight: 5.6 kg.
Type: 6205, laboratory power supply
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 150 W | |
| Input voltage AC | 115-230 VAC | |
| Width | 130 mm | |
| Height | 165 mm | |
| Depth | 320 mm | |
| Output current | 5 A | |
| Number of outputs | 1 | |
| Range of Output Currence | 0 to 5 A | |
| Output voltage DC | 30 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
