P 6160 | PeakTech

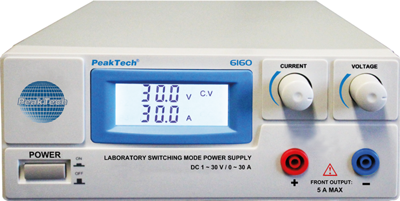

Laboratory power supply, 30 VDC, outputs: 1 (30 A), 0 to 30 A, 900 W, 200-240 VAC, P 6160
Order No.: 24K3532
EAN: 4250569403040
MPN:
P 6160
6160
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
397.1149 € *
Standard delivery time from the manufacturer is: 2 Weeks
Laboratory power supplies, type PeakTech 61.
Switching mode power supply for industrial applications, 3-digit voltage and current display, short-circuit/overload/thermal overload protection; Operating voltages: 200 to 240 VAC, 50/60 Hz. Output voltage: 1,0 to 30 VDC. Residual ripple: 50 mVpp. Safety: EN 61010-1. Dimensions: 214 x 87 x 336 mm. Weight: 2,9 kg.
Technical attributes (type, output current front/rear panel): 6160, 5.0/30 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 30 VDC | |
| Output current | 30 A | |
| Range of Output Currence | 0 to 30 A | |
| Power | 900 W | |
| Input voltage AC | 200-240 VAC | |
| Number of outputs | 1 | |
| Width | 336 mm | |
| Height | 87 mm | |
| Depth | 214 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
