P 6150 | PeakTech
Laboratory power supply, 30 VDC, outputs: 3 (5 A), 0 to 5 A, 150 W, 100-120 VAC/220-240 VAC, P 6150
Order No.: 24K3528
EAN: 4099891480394
MPN:
P 6150
6150
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
233.002 € *
Standard delivery time from the manufacturer is: 2 Weeks

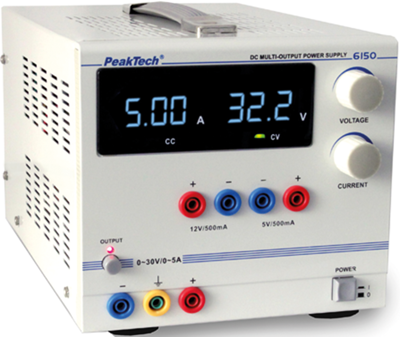

Laboratory power supplies, type PeakTech 6150.
Output voltage: 0 to 30 VDC. Output current: 0 to 5.0 ADC. Output power: 150 W and 2 fixed-voltage outputs: 5.0 and 12 VDC/0.5 A, linear control, adjustable current limiting and overload protection, short circuit-proof. Residual ripple: 1.0 mVRMS/3.0 mArms. Operating voltage, selectable: 100 to 120 V/220 to 240 V, 50/60 Hz. Safety: EN 61010-1. Dimensions: W 170, H 160, D 250 mm. Weight: 7.0 kg.
Type: 6150, laboratory power supply
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 30 VDC | |
| Output current | 5 A | |
| Range of Output Currence | 0 to 5 A | |
| Power | 150 W | |
| Input voltage AC | 100-120 VAC/220-240 VAC | |
| Number of outputs | 3 | |
| Width | 170 mm | |
| Height | 160 mm | |
| Depth | 250 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
