P 6080 A | PeakTech
Laboratory power supply, 15 VDC, outputs: 1 (3 A), 0 to 3 A, 45 W, 110-230 VAC, P 6080 A
Order No.: 24K3653
EAN: 4099891480455
MPN:
P 6080 A
6080 A
Unit Price (€ / pc.)
74.8034 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
74.80 € *
Price list
Quantity
Price per unit*
1 pcs.
74.8034 €
5 pcs.
71.6856 €
*incl. VAT plus shipping costs
Subject to prior sale

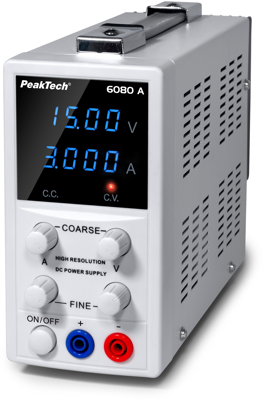

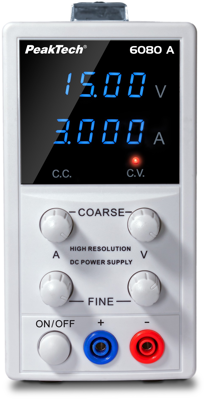

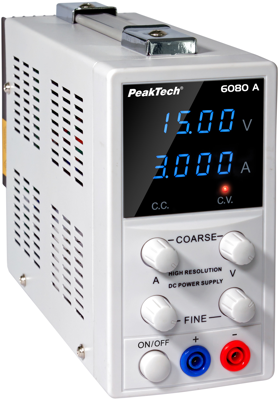

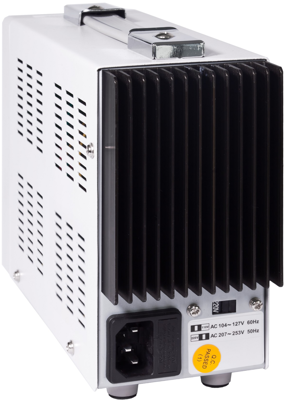

Digital laboratory power supply, P 6080 A, PeakTech
This modern design power supply has been specially designed for the service and training sector, and the illuminated 16 mm LCD displays allow quick and precise reading of the set values. The output voltage or current can be changed continuously.
Features
- Overload protection and short circuit proof
- 16mm LCD display with backlight
- 4 mm safety sockets
- Fanless housing design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 15 VDC | |
| Output current | 3 A | |
| Range of Output Currence | 0 to 3 A | |
| Power | 45 W | |
| Input voltage AC | 110-230 VAC | |
| Number of outputs | 1 | |
| Width | 95 mm | |
| Height | 160 mm | |
| Depth | 225 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
