P 6075 | PeakTech
Laboratory power supply, 30 VDC, outputs: 3 (5 A/5 A/3 A), 0 to 5 A, 150 W, 115-230 VAC, P 6075
Order No.: 24K3644
EAN: 4250569401466
MPN:
P 6075
6075
Unit Price (€ / pc.)
361.3673 € *
Available: 1 pcs.

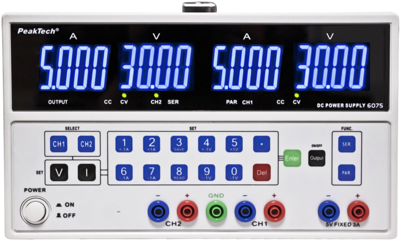

Double unit, type PeakTech 6075.
Output voltage: 2 x 0 to 30 VDC. Output current: 2 x 0 to 5.0 ADC, 2 x 150 W and 5.0 VDC/3.0 A fixed. For series of parallel operation. Dimensions: 260 x 160 x 345 mm. Weight: 7.5 kg.
Type: 6075, AC/DC adapter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 30 VDC | |
| Output current | 5 A | |
| Output current 2 | 5 A | |
| Output current 3 | 3 A | |
| Range of Output Currence | 0 to 5 A | |
| Power | 150 W | |
| Input voltage AC | 115-230 VAC | |
| Number of outputs | 3 | |
| Width | 260 mm | |
| Height | 160 mm | |
| Depth | 345 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
