P 6070 | PeakTech
Laboratory power supply, 30 VDC, outputs: 1 (5 A), 0 to 5 A, 150 W, 115-230 VAC, P 6070
Order No.: 24K3642
EAN: 4250569401459
MPN:
P 6070
6070
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
189.6265 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
189.63 € *
Price list
Quantity
Price per unit*
1 pcs.
189.6265 €
5 pcs.
180.0946 €
*incl. VAT plus shipping costs
Subject to prior sale

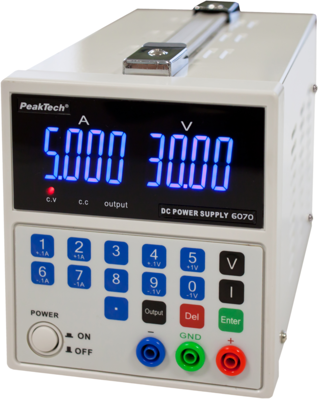

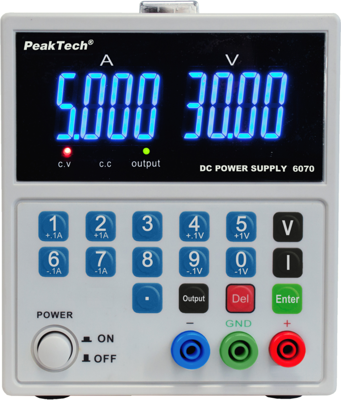

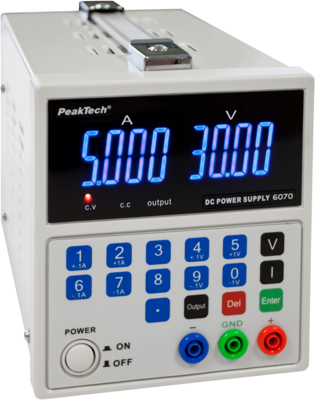

Power supplies, type PeakTech 6070/6075.
Output voltage: 0 to 30 VDC. Output current: 0 to 5.0 ADC, 150 W. Operating voltage: 115/230 VAC, 50/60 Hz. Linear voltage and current setting. Microprocessor controlled, with overload protection, short circuit-proof. Display: 12 mm LED. Safety: EN 61010-1. Dimensions: 135 x 155 x 275 mm. Weight: 4.5 kg.
Type: 6070, AC/DC adapter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 30 VDC | |
| Output current | 5 A | |
| Range of Output Currence | 0 to 5 A | |
| Power | 150 W | |
| Input voltage AC | 115-230 VAC | |
| Number of outputs | 1 | |
| Width | 135 mm | |
| Height | 155 mm | |
| Depth | 275 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
