P 5995 | PeakTech

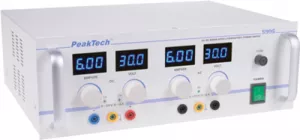

Laboratory power supply, 30 VDC, outputs: 2 (6 A/6 A), 0 to 6 A, 180 W, 220-240 VAC, P 5995
Order No.: 24K378
EAN: 4099891480523
MPN:
P 5995
5995
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
677.11 € *
Available: 1 pcs.
AC/DC stabilized power supplies, type PeakTech 5995.
DC/AC voltage outputs with separate adjustment feature, AC output with current limiting and overload protection; Input voltage: 230 VAC. Output voltages: 0 to 30 VDC and 0 to 30 VAC. Operating current: 0 to 6.0 A AC/DC, variable. Safety: EN 61010-1. Dimensions: 380 x 140 x 300 mm. Weight: 12 kg.
Type: 5995, AC/DC adapter
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 30 VDC | |
| Output current | 6 A | |
| Output current 2 | 6 A | |
| Range of Output Currence | 0 to 6 A | |
| Power | 180 W | |
| Input voltage AC | 220-240 VAC | |
| Number of outputs | 2 | |
| Width | 380 mm | |
| Height | 140 mm | |
| Depth | 300 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
