P 1890 | PeakTech

Laboratory power supply, 20 VDC, outputs: 1 (10 A), 0 to 10 A, 200 W, 90-264 VAC, P 1890

Order No.: 24K5554
EAN: 4099891481001
MPN:
P 1890
1890

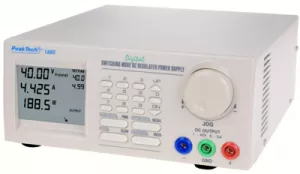

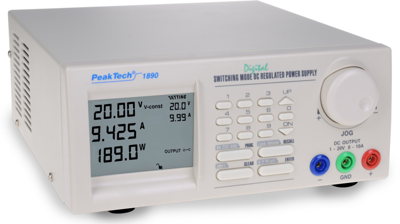

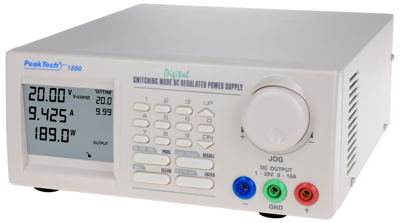

P 1890 PeakTech Bench Power Supplies and Loads Image 1
P 1890 PeakTech Bench Power Supplies and Loads Image 2
P 1890 PeakTech Bench Power Supplies and Loads Image 3
Image may differ
Unit Price (€ / pc.)
471.0972 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
471.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
471.0972 €

DC Switched Mode Power Supply, 1890, PeakTech

This switching power supply is ideal for continuous testing tasks in production and manufacturing areas, as well as for use in research and development laboratories. It is controlled by a microprocessor and has 9 freely programmable memory units for storing various voltage and current values for recall at will.

Features

  • 4-digit multifunction LCD display (48 x 66 mm) with backlight; ± 1.5 % + 2 pcs. accuracy
  • Control voltage and control current display with automatic switching
  • Short-circuit, overload and overtemperature protection

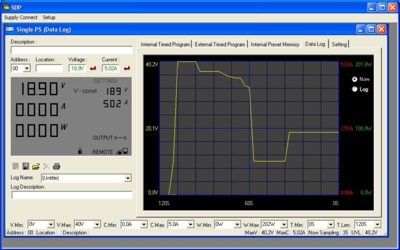

  • With Windows software for recording and storing data and test sequences
Technical specifications
Range of Output Currence 0 to 10 A
Depth 215 mm
Output voltage DC 20 VDC
Output current 10 A
Width 193 mm
Height 98 mm
Power 200 W
Number of outputs 1
Input voltage AC 90-264 VAC
Logistics
Country of origin CN
Customs tariff number 85044083
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
