P 1570 | PeakTech
Laboratory power supply, 1 bis 16 VDC, outputs: 1 (60 A), 0 to 60 A, 960 W, 200-240 VAC, P 1570
Order No.: 24K3496
EAN: 4099891480356
MPN:
P 1570
1570
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
566.1306 € *
Standard delivery time from the manufacturer is: 2 Weeks

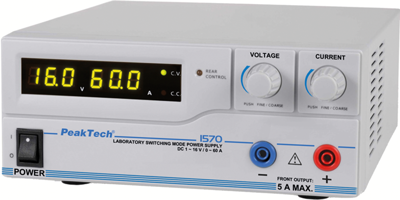

Switching mode power supplies, type PeakTech 1565/1570/1575/1580.
High degree of RF interference resistance, RF filtering. Overload, thermal overload and overvoltage protection. 3 programmable default voltage and current settings, remote control of voltage and current, output on/off signals via analog input, programmable cycle times for current/voltage output by means of the PC software, ground contact, active PFC and high energy efficiency, rotary encoder for rough and fine adjustment, 3-digit 15 mm green LED display
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 1 to 16 VDC | |
| Output current | 60 A | |
| Range of Output Currence | 0 to 60 A | |
| Power | 960 W | |
| Input voltage AC | 200-240 VAC | |
| efficiency | 85.5 % | |
| Number of outputs | 1 | |
| Width | 200 mm | |
| Height | 90 mm | |
| Depth | 325 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
