P 1535 | PeakTech
Laboratory power supply, 1 bis 32 VDC, outputs: 1 (20 A), 0 to 20 A, 600 W, 200-240 VAC, P 1535
Order No.: 24K3494
EAN: 4099891480332
MPN:
P 1535
1535
Unit Price (€ / pc.)
342.4820 € *
Available: 1 pcs.
Total Price:
342.48 € *
Price list
Quantity
Price per unit*
1 pcs.
342.4820 €
3 pcs.
328.4757 €
*incl. VAT plus shipping costs
Subject to prior sale

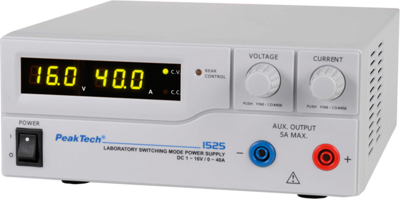

Switching mode power supplies, type PeakTech 1525/1530/1535.
High degree of RF interference resistance, RF filtering. Overload, thermal overload and overvoltage protection. 3 programmable default voltage and current settings. Ground contact, active PFC and, high power efficiency, rotary encoder for rough and fine adjustment, 3-digit x 15 mm green LED display
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 1 to 32 VDC | |
| Output current | 20 A | |
| Range of Output Currence | 0 to 20 A | |
| Power | 600 W | |
| Input voltage AC | 200-240 VAC | |
| efficiency | 87 % | |
| Number of outputs | 1 | |
| Width | 200 mm | |
| Height | 90 mm | |
| Depth | 255 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
