P 1320 | PeakTech
Power supply unit, 3 V, 4.5 V, 6 V
Order No.: 24K5490
EAN: 4250569400254
MPN:
P 1320
1320
This item is no longer available.
As an alternative, we recommend the following item:

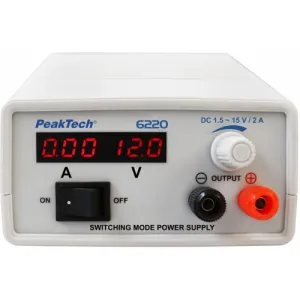

Switching power supply, 1,5 bis 15 VDC, outputs: 1 (2 A), 0 to 2 A, 100-240 VAC, P 6220
Order No.: 24K6126
Manufacturer: PeakTech
per pc. 29.9285 € *

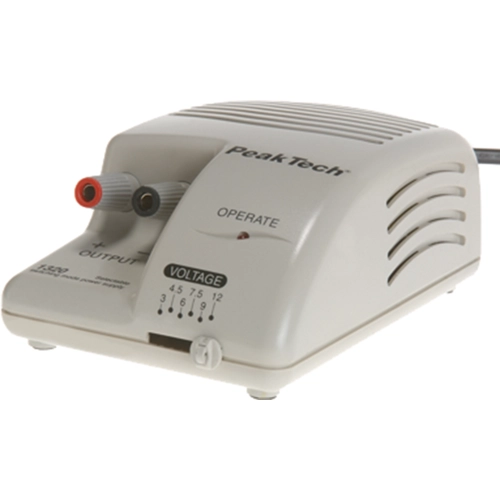

Power supplies, type PeakTech 1320.
State-of-the-art switching mode power supply with 6 different DC output voltages. Overload protected and short circuit-proof. Highly stable output voltage
Output voltages: 6 x VDC: 3.0 V, 4.5 V, 6.0 V, 7.5 V, 9.0 V and 12 V
Output current: 3.0 A
Residual ripple: 25 mVRMS
Line voltage stability: 60 mV
Load stability: 300 mV
Power supply: 230 VAC at 50 Hz
Case: gray plastic. Dimensions: W 90, H 50, D 140 mm. Weight: 420 g.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 3 to 12 VDC | |
| Output current | 3 A | |
| Input voltage AC | 230 VAC | |
| efficiency | 80 % | |
| Number of outputs | 1 | |
| Width | 90 mm | |
| Height | 50 mm | |
| Depth | 140 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
