P 5150 | PeakTech
PeakTech differential pressure meter, P 5150, 5150
Order No.: 24K5636
EAN: 4099891465711
MPN:
P 5150
5150
Unit Price (€ / pc.)
141.9075 € *
Standard delivery time from the manufacturer is: On Request
Pressure/Flow Meter, 5150, PeakTech

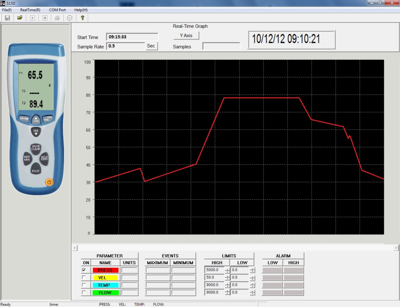

Microprocessor-controlled gauge for determining pressure differences with a multifunction digital display and backlight. This high-precision measuring instrument enables use in installation, diagnosis, repair, maintenance and optimization of air conditioning, heating and ventilation systems. The USB interface and the included software are used to log the measured values over longer periods of time.
Features
- For measuring static and pressure differences
- Measurement range from -344 mbar to +344 mbar
- Pressure measurement in 11 selectable units such as: Bar, mbar, psi kg/cm2, kpa and many more.
- Switchable auto power-off function
Technical specifications
| Version | USB interface/PC software | |
| Accuracy | ±0.3 % | |
| measurement range | -344 to 344 mbar | |
| Product type | differential pressure meter | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 50 °C | |
| Resolution | 0.1 mbar |
Download
Logistics
| Customs tariff number | 90303100 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
