PCE-TM 80 | PCE Instruments
Torque Measuring Device PCE-TM 80
NCNR (non cancelable / non returnable)

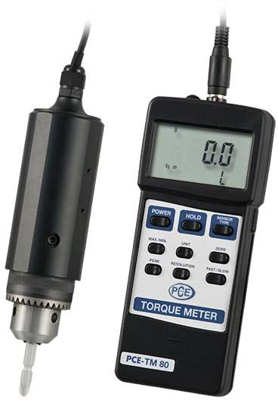

Torque meter, PCE-TM 80, PCE Instruments
The Digital Torque Meter PCE-TM 80 with external sensor to measure the static or startup torque moment in screws, components, switches, transmission shafts, etc. The Digital Torque Meter PCE-TM 80 is an affordable solution to easily perform static torque measurements. The Digital Torque Meter PCE-TM 80 operates by rotatory movements to the left and right and it is ideal for the torque moment. The Digital Torque Meter PCE-TM 80 offers the option to enlarge the 1 digit resolution. The Digital Torque Meter PCE-TM 80 shows the Peak value as well as the max. and min. values. Use of the optional software allows real-time data can be continuously transferred to a PC or portable computer. The Digital Torque Meter PCE-TM 80 is very robust to ensure both long duration and reliability.
Features
- Range 0 ... 147 Ncm
- Selection of 3 units (Ncm, kgfcm, lbfin)
- Digital output RS-232
- External rotational torque sensor
- Selection of the resolution - Automatic shut-off
- Peak-Hold function
| Filter | Property | Value |
|---|---|---|
| Torque range | 147.1 Ncm | |
| Accuracy | ±1.5 % | |
| Length | 180 mm | |
| Width | 72 mm | |
| Height | 32 mm |
| Property | Value |
|---|---|
| Customs tariff number | 90318080 |
| Country of origin | TW |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
