PCE-IR 50 | PCE Instruments
PCE Instruments infrared thermometer, PCE-IR 50
Order No.: 31K0184
EAN: 4250348728333
MPN:
PCE-IR 50
Unit Price (€ / pc.)
309.1382 € *
Standard delivery time from the manufacturer is: 9 Weeks
Thermometer, PCE-IR 50, PCE Instruments

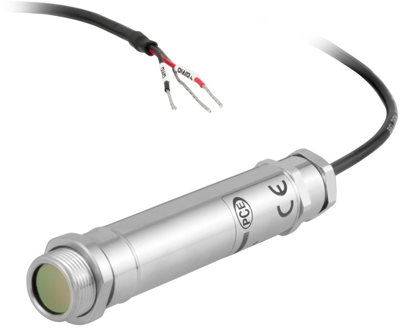

With the digital thermometer PCE-IR 50, surface temperatures can measured quickly and easily. The measuring range of the digital thermometer is 0 ...500°C / 32 ... 932°F. The measured temperature is provided as a 4 ... 20-mA standard signal which means that the digital thermometer can be easily integrated into different monitoring systems, including those in different production processes or food storage as well as the monitoring of electronic systems.
Features
- Measurements from 0 ... + 500 °C

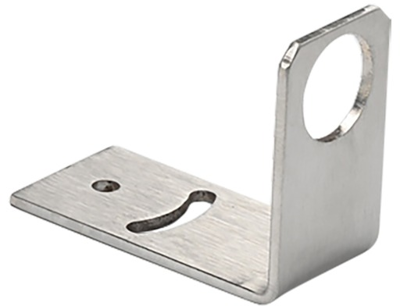

- For wall mounting
- Output signal: 4 ... 20 mA
- Easy operation and assembly
- Short response time
- 1 m connection cable
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | 0 °C | |
| max. operating temperature | 500 °C | |
| Accuracy | ±1 % | |
| Response Time | 240 ms | |
| Product type | infrared thermometer | |
| Distance/measuring point ratio | 15:1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 90251900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
