PCE-313A | PCE Instruments

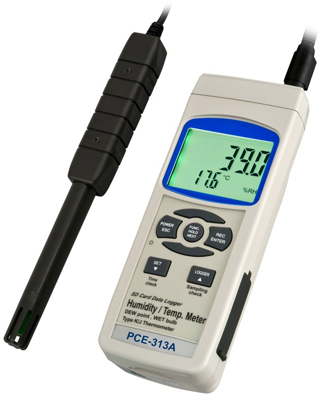

PCE Instruments moisture and temperature meter, PCE-313A
Thermometer, PCE-313A, PCE Instruments

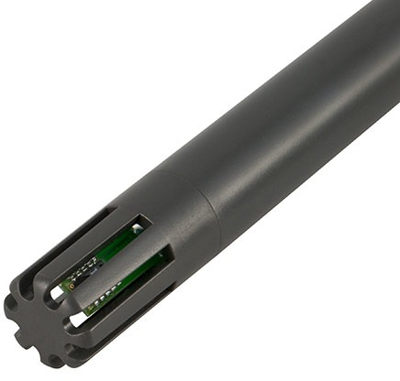

PCE-313A is a combination thermometer hygrometer used to measure the relative humidity (% RH) and temperature (°C / °F) of the air. Ideal for use in evaluating heating, ventilation and air conditioning (HVAC) system performance, this digital thermo-hygrometer also has a port for connecting a type-K thermocouple. This allows the user to take surface temperature measurements using an optional external type-K temperature probe (not included - see accessories).

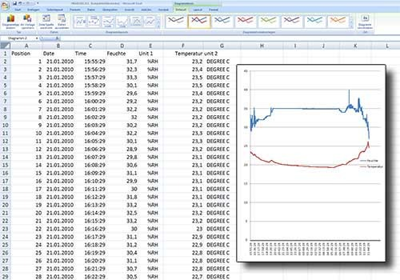

The thermo hygrometer features a built-in data logger capable of recording humidity and temperature measurement data at an adjustable sampling rate in direct mode or permanently in data logging mode. To use these functions, you must program the meter in advance using the keypad. For permanent or long-term recording applications, we recommend powering the meter using an optional AC power adapter.
Features
- Measures temperature, humidity, dew point and external temperature via the K type thermocouple connection

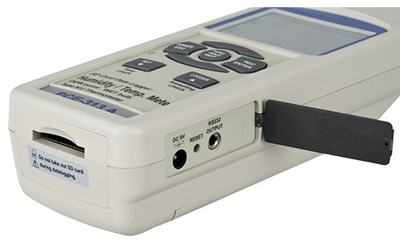

- Flexible real-time data memory by means of SD memory card (1 … 16 GB)
- Data hold function
- Low battery indication
- Large LC display
- Tripod connection
- Easy to use
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -50 °C | |
| Product type | moisture and temperature meter | |
| Resolution | 0.1 °C | |
| Accuracy | ±0.4% + 0.5 °C | |
| max. operating temperature | 1300 °C | |
| Relative Humidity Range | 5 to 95 % |
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 90258040 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
