PCE-DFG NF 2K | PCE Instruments

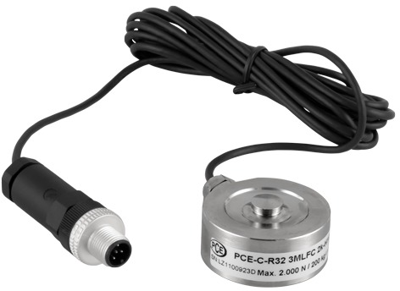

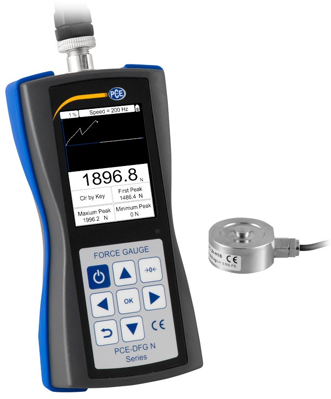

Force meter, with external load cell, 2000 N, 0-2 kN, PCE Instruments PCE-DFG NF 2K
Order No.: 31K0142
EAN: 4250348719300
MPN:
PCE-DFG NF 2K
Unit Price (€ / pc.)
1,270.6344 € *
Available: 1 pcs.
Available in 2 Days: 1 pcs. - if ordered today
Total Price:
1,270.63 € *
Price list
Quantity
Price per unit*
1 pcs.
1,270.6344 €
3 pcs.
1,207.1003 €
*incl. VAT plus shipping costs
Subject to prior sale

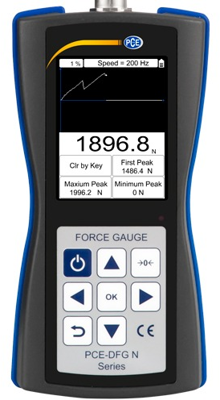

Force gage, PCE-DFG NF 2K, PCE Instruments

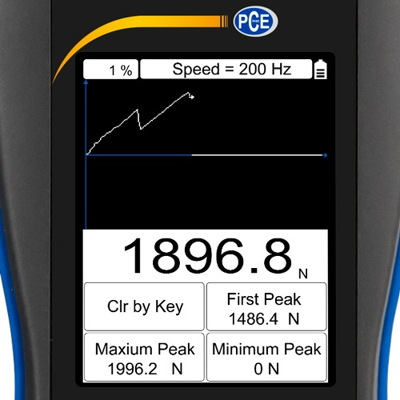

The force gage can operate at a sampling rate of up to 1600 Hz. The sampled measured values are displayed as an instantaneous value, as well as in a graph trace directly in the force gage. The measurements can be stored in the internal memory or transmitted via USB interface with the included software with a maximum of 800 Hz as a live measurement.
The force gage offers the option of storing two limit values, which are continuously compared with the instantaneous value. When exceeding or falling below these limits, a signal is displayed in the display of the force gage, as well as a response via external interfaces, e.g. this can be used for the control of a testing machine.
Features

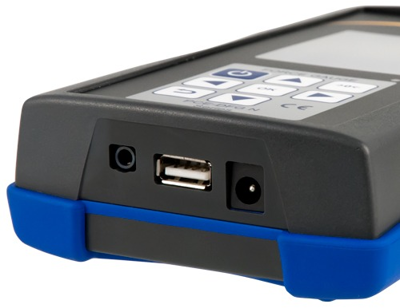

- USB interface
- Graphic display
- Fast response time
- Memory for 100 measurements
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | force meter | |
| Version | with external load cell | |
| Force | 2000 N | |
| measurement range | 0-2 kN | |
| Readability | 0.2 N |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90318080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
