PCE-SCI-U | PCE Instruments
Multi-signal converter, PCE-SCI-U
Order No.: 31K0713
EAN: 4250348722256
MPN:
PCE-SCI-U
Unit Price (€ / pc.)
165.41 € *
Available in 2 Days: 5 pcs. - if ordered today

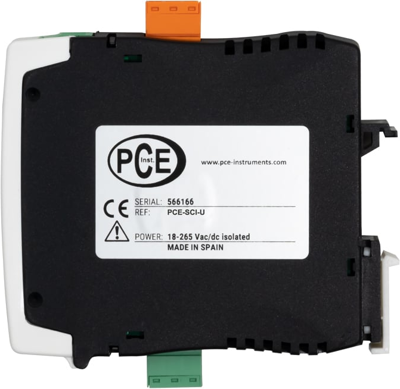

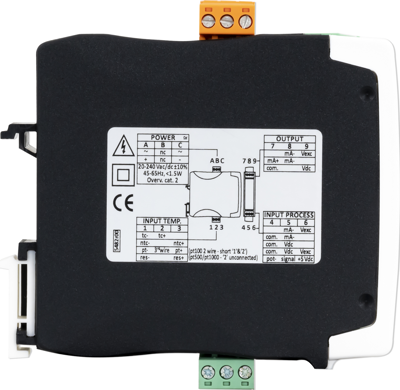

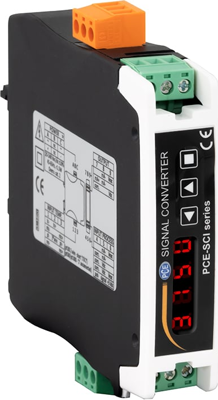

Multi-signal converter, PCE-SCI-U, PCE Instruments
The transmitter converts an analog input signal into a corresponding analog output signal. The input and output signals from the transmitter are completely galvanically isolated. The input and output range is set via two buttons. The type of adjustment is displayed on an internal LED display. Over 100 different combinations of input and output, as well as the free scaling within the set ranges, make this transmitter a universally applicable device and save an expensive and laborious storage of different types. Since the input and output ranges can also be set identically, the transmitter can also be used for galvanic decoupling.
Features
- Freely scalable
- In operation in less than 5 minutes
- Converts analogue input range
- Completely galvanic isolation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| measurement range | 4-20 mA, 0-10 V | |
| Length | 108 mm | |
| Product type | multi-signal converter | |
| Height | 106 mm | |
| Width | 22.5 mm | |
| Weight | 150 g | |
| Version | with combinations adjustable via 100 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 90318080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
