PCE-DT 50 | PCE Instruments
Tachometer PCE-DT 50
Order No.: 31K0121
EAN: 4250348718990
MPN:
PCE-DT 50
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
56.1085 € *
Available: 2 pcs.
Available in 2 Days: 182 pcs. - if ordered today
Tachometer, PCE-DT 50, PCE Instruments

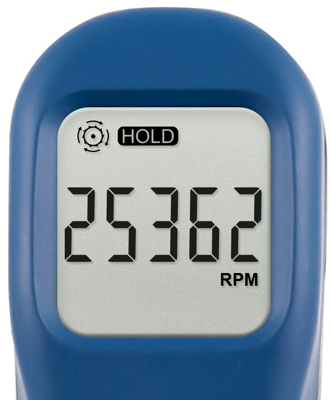

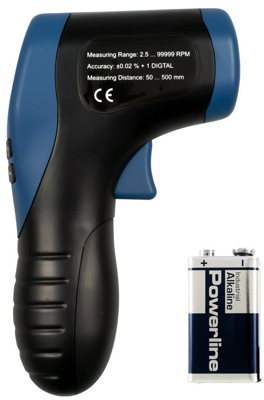

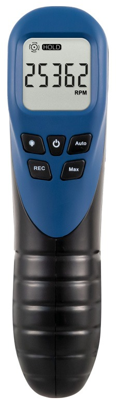

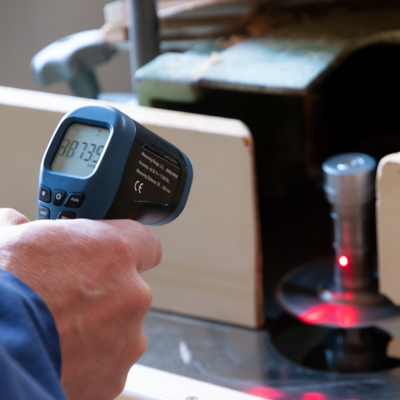

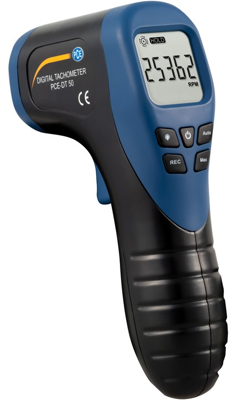

The pistol gauge PCE-DT 50 in the form of a pistol is ideal for quick control of speeds. This hand-held tachometer measures the rotational speed of moving objects, such as shafts, drives, pinions, etc. The hand tachometer uses a laser that emits light and a receiving diode that detects the light-dark contrast of the reflected light. The hand tachometer measures the speed in the range of 2.5 ... 99,999 rpm (RPM). The speed is shown on the illuminated display of the tachometer. The measuring distance from the hand tachometer is 50 ... 500 mm / 2 ... 19.7 in.
Features
- Measuring range up to 99,999 rpm
- Automatic mode
- MIN / MAX / AVG mode
- LD display with lighting
- Data hold function
- Automatic shutdown
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | rotation speed control counter | |
| measurement range | 2.5 to 99999 rpm | |
| Accuracy | ±0.02 % |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90292038 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
