PCE-DPD-P1 | PCE Instruments

Order No.: 31K0439
EAN: 4250348722393
MPN:
PCE-DPD-P1

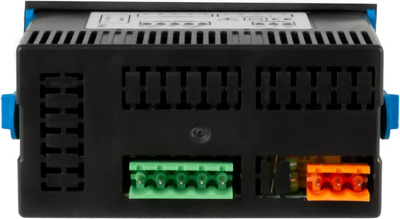

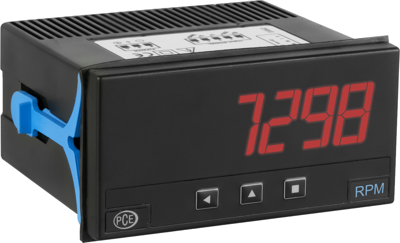

PCE-DPD-P1 PCE Instruments Multifunction Measuring Devices and Multifunction Displays Image 1
PCE-DPD-P1 PCE Instruments Multifunction Measuring Devices and Multifunction Displays Image 2
Image may differ
Unit Price (€ / pc.)
248.71 € *
Available in 4 Days: 1 pcs. - if ordered today
Total Price:
248.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
248.71 €

Digital panel meter, PCE-DPD-P1, PCE Instruments

Impulse counter, ratemeter and periodmeter. Reading at 6 digits with 14 mm digit height. Standard 96 x 48 mm (1/8 DIN) size, for panel mount. Accepts all type of impulse signals and encoders. Provides excitation voltage for the sensor. Universal high and low AC and DC power options. Optional output modules with relay, transistor, SSR control, analog outputs and MODBUS RTU communication.

Scope of delivery

  • 1 x industrial counter PCE-DPD-P1 (in desired configuration)
  • 1 x unit label
Technical specifications
Filter Property Value
Degree of protection (IP) IP65
Assembly panel mounting
Width of cut-out 96 mm
Max. current 70 mA
Height of cut-out 48 mm
Control Output No
Voltage 85-265 V AC/DC
Installation depth 91 mm
Frequency measurement No
Logistics
Property Value
Country of origin ES
Customs tariff number 90318080
Compliance
Property Value
SVHC free not_specified
RoHS conform in_review
