PCE-VE 320HR | PCE Instruments
Endoscope, 320 x 240 pixel, PCE Instruments, PCE-VE 320HR
Order No.: 31K0176
EAN: 4250348715647
MPN:
PCE-VE 320HR
Unit Price (€ / pc.)
817.887 € *
Standard delivery time from the manufacturer is: 9 Weeks

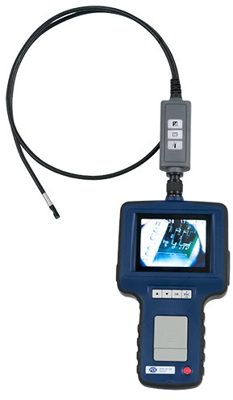

Videoscope, PCE-VE 320HR, PCE Instruments
PCE-VE 320HR is a videoscope, borescope, inspection camera or endoscope for the non-destructive inspection (NDI) of engines, machines and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 6 LED lights (4 front, 2 side) for better illumination. In addition, digital image magnification or zoom of up to 2 times is available, plus boost function for improved image quality in the dark.
Features
- Features a 5.5 mm / 0.22 in diameter waterproof camera head, picture and video recording
- 1 m / 3.28 ft long semi-flexible / semi-rigid cable
- 3.5 in TFT LCD monitor
- Image capture / Photos und Videos

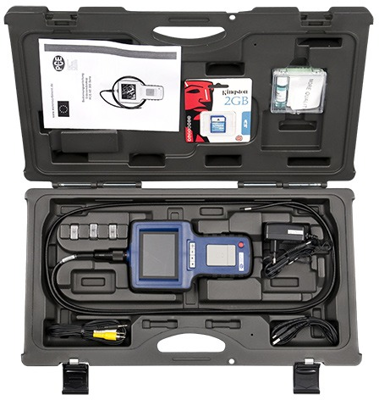

- Includes an SD memory card, hard carrying case, cleaning kit and mirror attachment for 90° angle viewing
- 6 LEDs (2 at the front, 2 at the sides for better illumination when using the mirrors)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resolution | 320 x 240 pixel | |
| Product type | endoscope | |
| illuminated | Yes | |
| Interfaces | Mini USB 1.1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85258900 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
